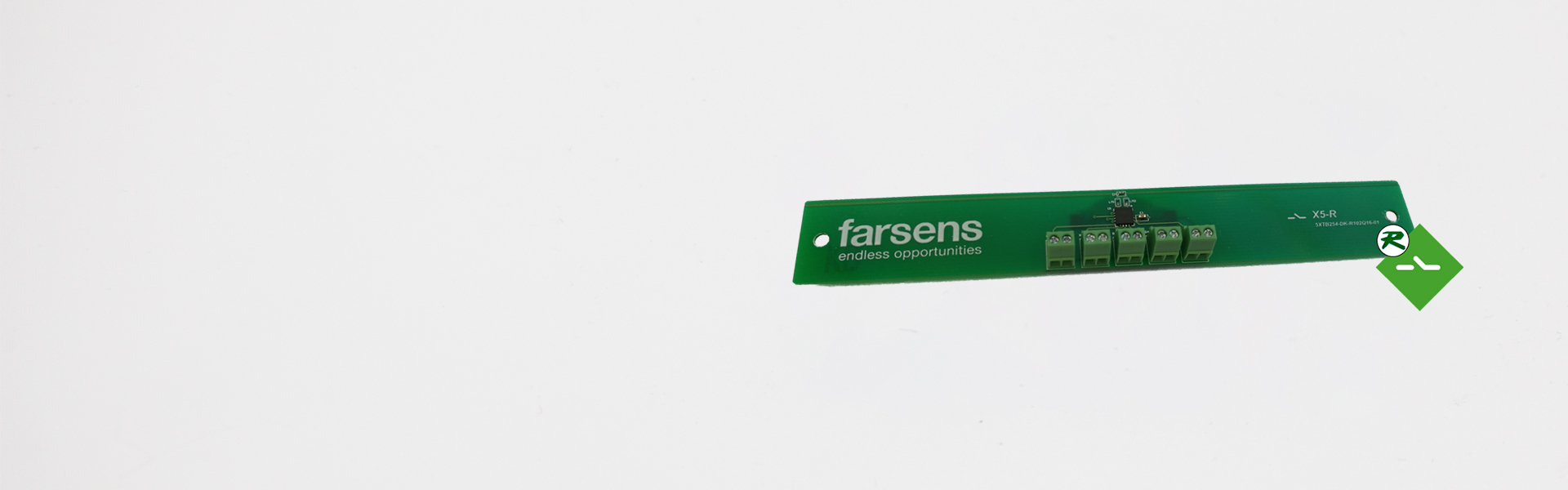

X5-R is an EPC Class-1 Generation-2 (C1G2) RFID tag based on Farsens' batteryless sensor technology. Built in a compact PCB format, the tag includes an accelerometer.

These RFID sensor tags are compatible with commercial UHF RFID readers (EPC C1G2). With a 2W ERP setup the battery-less orientation sensor can communicate to over 5 meters -16 feet.
The X5-R can be customized with different antenna design and sizes, depending on the specific application. It can be encapsulated in an IP67 or IP68casing for usage in harsh environments.

It may also bepossible to customize the specifications of the sensor upon request.

• EPC C1G2 compliant
• ISO 18000-6 Type C compliant
• 160-bit EPC Bank: Up to 128-bit EPC
• 96-bit TID Bank: Up to 48-bit Serial Number
• Available User Memory: Up to 1008-bit Non
  Volatile User Data
• Long range in passive mode: 5m
• Extended range in battery assisted passive
  mode: 20m
• 5 channel switch monitoring
  - Detects open/short circuit
  - Internal pulls for unused channels
