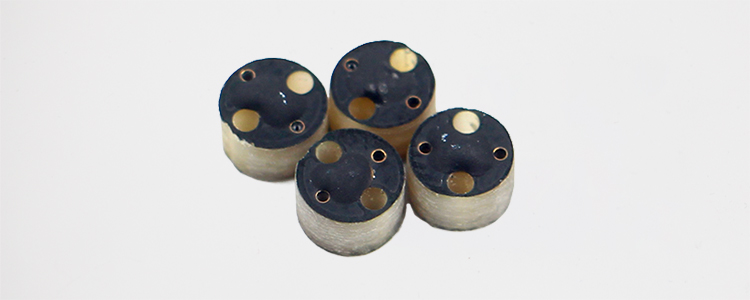

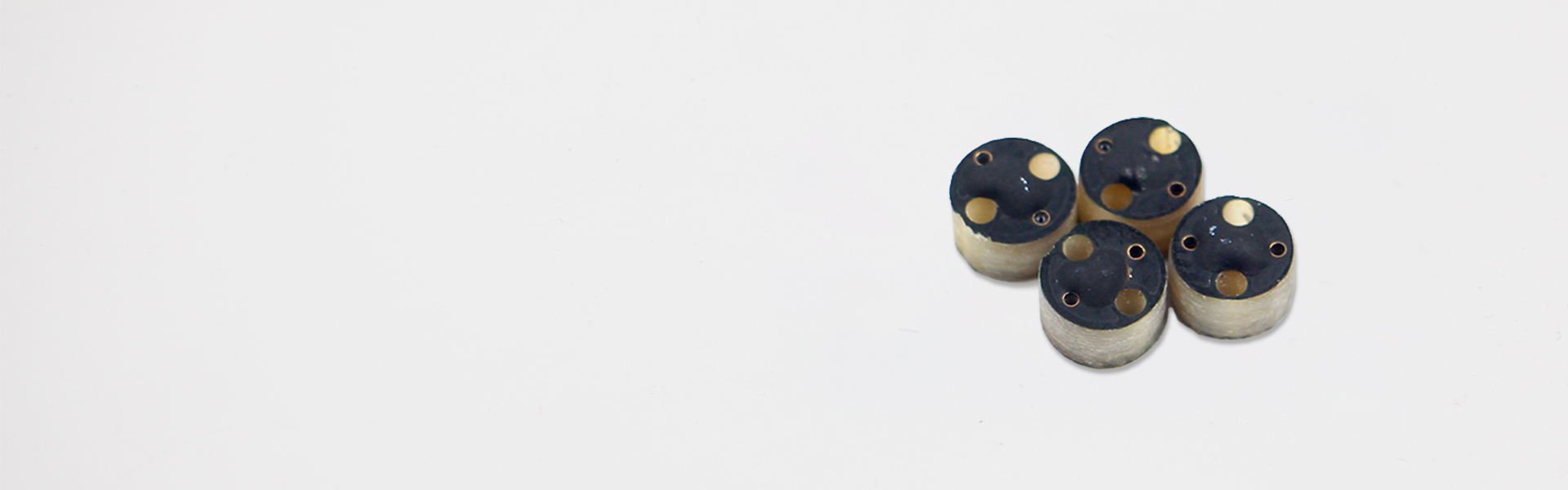

| Physical Features | Model | RCP8020 |
| Material | FR-4 | |
| Color | Black | |
| Dimensions | D=5 x 3 mm | |
| Weight | 1.0 g | |
| Working Temp | -40~+85℃ | |
| Survive Temp | -40~+150℃ | |
| IP Code | IP68 | |
| Humidity | 98% Non-condensing | |
| RFID Features | RFID Standard | EPC C1G2 (ISO18000-6C) |
| Chip Type | NXP Ucode 8 | |
| Memory | User -N/A; EPC - 128 bits; TID - 96 bits | |
| Read Range(Fixed Reader) | FCC: 6.2 m(on 15 x 2 cm metal), 2.0 m(on 14 x 14 cm metal) | |
| Read Range(Handheld Reader) | FCC: 2.0 m, on metal | |
| Other Features | Data Storage | > 10 years |
| Re-write | 100000 times | |
| Installation | 3M adhesive, Rivet, Magnet, Screw | |
| Customization | Printing LOGO, Barcode, Serial number, Encoding, Designing,etc | |
| Application | Electricity and railway management | Industry automation management Metallic Asset management | Tool tracking,etc |
