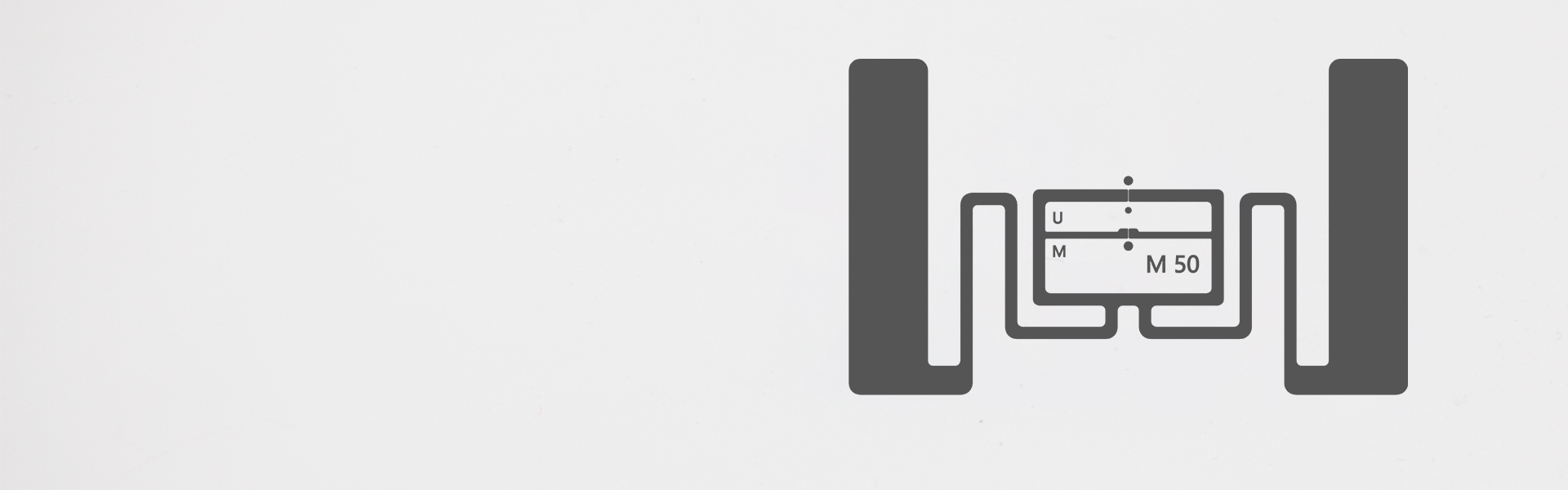

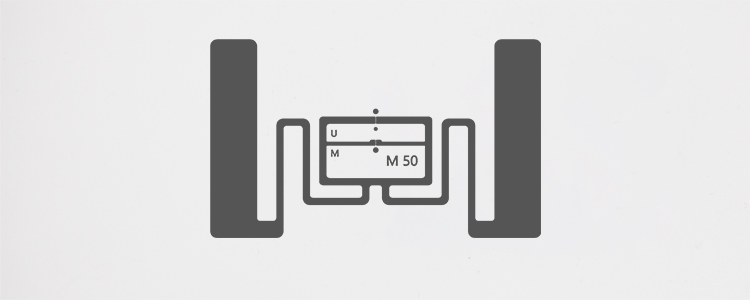

Chip Type Impinj M830
   EPC 128 bits
   User N/A
   TID 96 bits
   Model —— RC5134
   Delivery Format Dry Inlay Label
   Die-Cut Dimension —— 54 x 35 mm / 2.13 x 1.38 in
   Inlay Substrate 50 um PET 50 um PET
   Face Material —— Coated Paper
   Adhesive —— Hot Melt
   Standard Pitch 38.1mm / 1.50 in 38.1mm / 1.50 in
   Web Width 68 mm / 2.68 in 65 mm / 2.56 in
   Core inner Diameter 76.2 mm / 3.0 in 76.2 mm / 3.0 in
   Operating temperature -40°C to 85°C / -40°F to 185°F
   Storage Condition 20±5℃, 50±10% RH, Store away from sunlight
   Installation —— Adhesive on clean & dry surface
   Customization Encoding, Designing, etc. Printing, Encoding, Designing, etc.
   Package 10,000 pcs / roll, 4 rolls / box 2,500 pcs / roll, 4 rolls / box
   Application Non-metal
