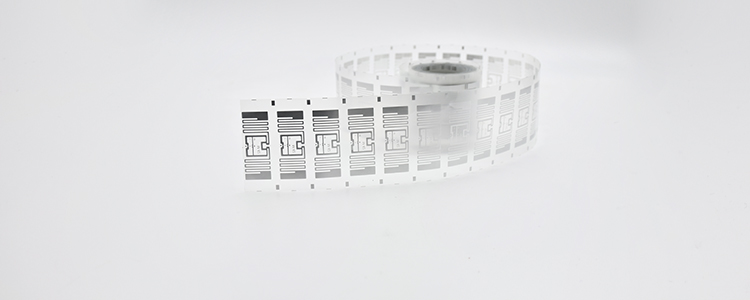

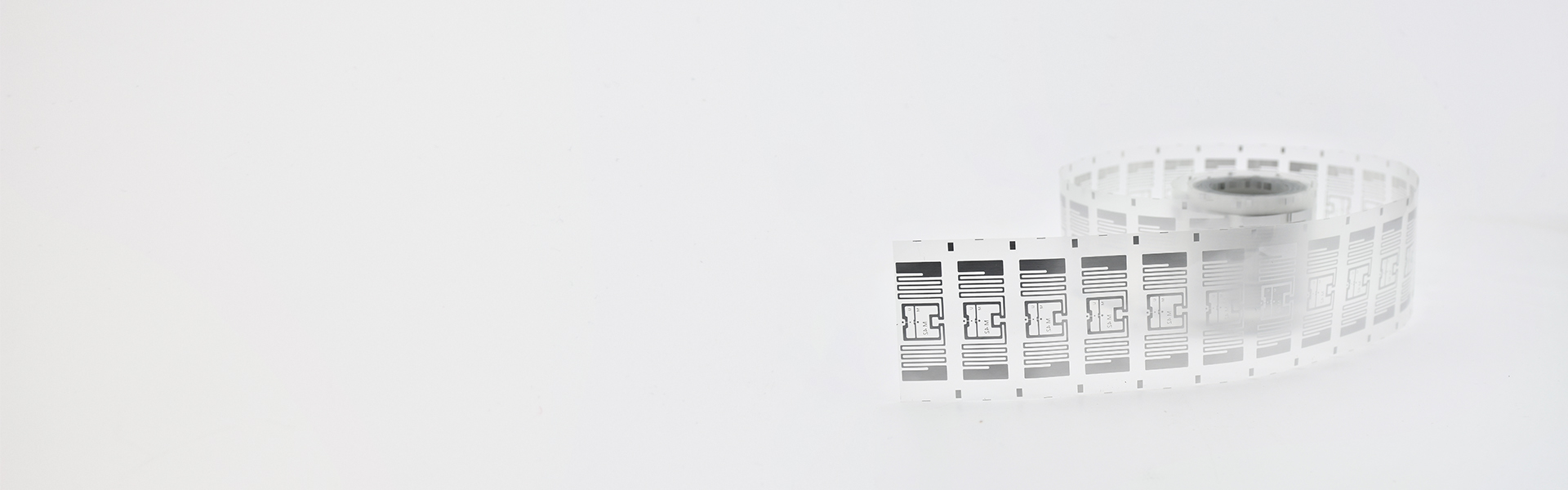

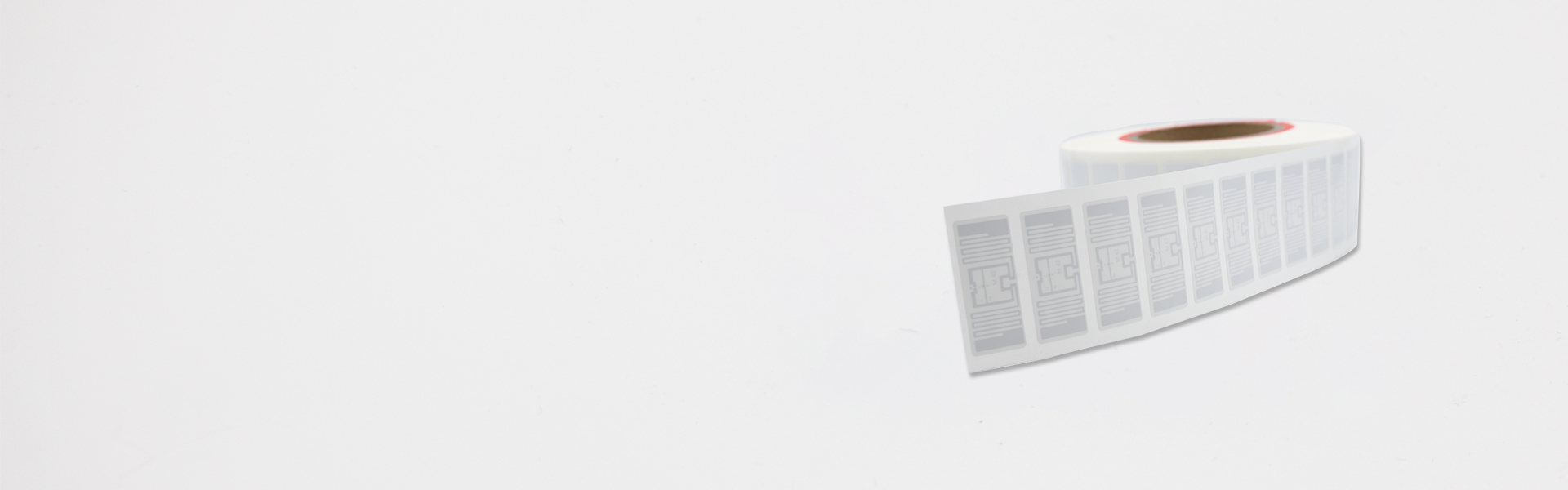

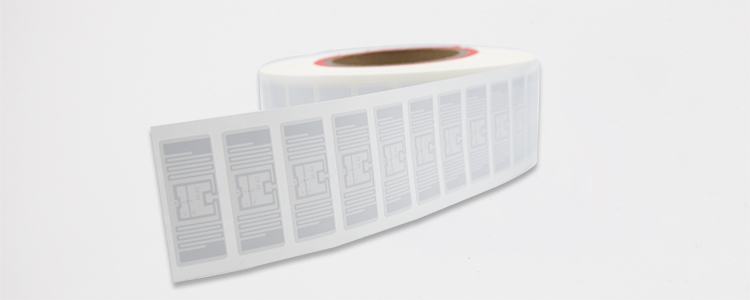

| RFID Features | Model | RC5804 |
| Frequency | 860-960 MHz | |
| Chip Type | Impinj M830 | |
| Memory | User - N/A; EPC - 128 bits; TID - 96 bits | |
| Data Storage | > 10 years | |
| Re-write | 100,000 times | |
| Read Range(2W ERP) | FCC: > 10.0 m, on cardboard; > 9.0 m, on PTFE; > 8.0 m, on wood ETSI: > 13.0 m, on cardboard; > 12.0 m on PTFE; > 7.0 m, on wood |
|
| Physical Features | Dimensions | 45 x 18 mm / 1.77 x 0.709 in |
| Material | PET | |
| Adhesive | Double-sided tape | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| Other Features | Installation | Adhesive on clean & dry surface |
| Customization | Printing, Encoding, Designing, etc. | |
| Package | 2,500 pcs / roll, 4 rolls / box | |
| Application | Retail & Apparel / Asset tracking Smart packaging / Authentication |
