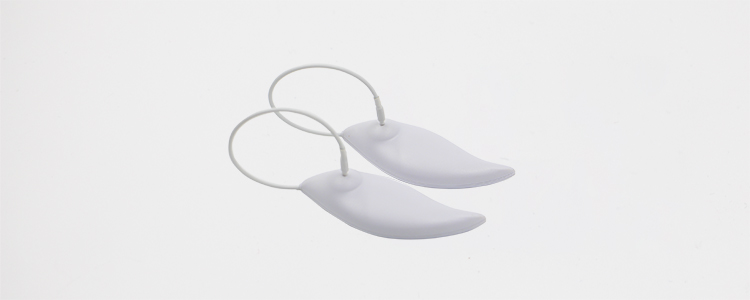

RFID Features Model RC9604
Air Interface Protocol EPC Class 1 Gen 2 / ISO 18000-63 Type C
Frequency 860-960 MHz
Chip Type Impinj Monza R6P
Memory User - 32(64) bits; EPC - 128(96) bits; TID - 96 bits
Data Storage > 10 years
Re-write 100,000 times
Read Range(2W ERP) > 9.0 m(29.5 ft), on clothes
Read Range(AM/RF) > 1.0 m, for one EAS door system
Physical Features Head Dimension 76 x 28 x 18 mm / 2.99 x 1.10 x 0.71 in
Belt Dimension Ø3.5 x 138 mm / Ø0.14 x 5.43 in
Material ABS
Weight 12.0 g
Operating Temperature -40°C to 85°C / -40°F to 185°F
Survival Temperature -40°C to 100°C / -40°F to 212°F
Storage Condition 20±5℃, 50±10% RH, Store away from sunlight
IP Rate IP54
Other Features Installation Pin buckle
Customization Printing, Encoding, Design, etc.
Package 100 pcs / bag, 10 bags / box
Application Clothes security anti-theft / Apparel retail management
Clothes inventory management / Other items security control
Application
