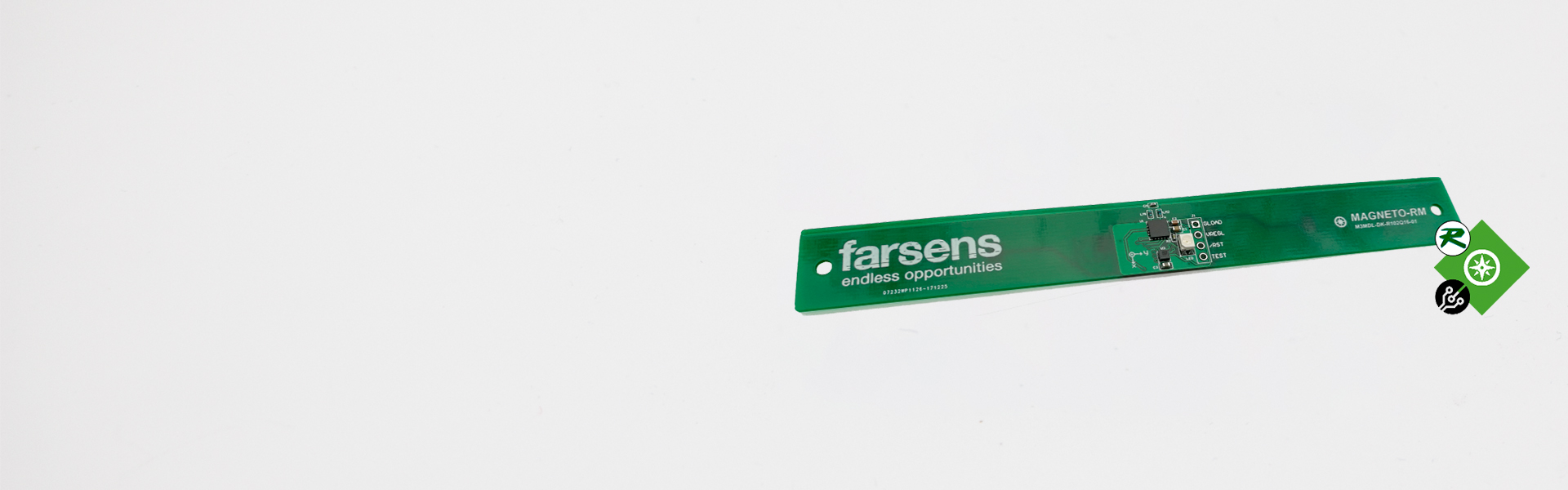

MAGNETO-RM is an EPC Class-1 Generation-2 (C1G2) RFID tag based on Farsens' batteryless sensor technology. Built in a compact PCB format, the tag includes a 3 axis magnetic field sensor.

These RFID sensor tags are compatible with commercial UHF RFID readers (EPC CiG2). With a 2W ERP setup the battery-less resistance meter can communicate to over 5 meters -16 feet.
The MAGNETO-RM can be customized with different antenna design and sizes, depending on the specific application. It can be encapsulated in an IP67 or IP68casing for usage in harsh environments.

It may also bepossible to customize the specifications of the sensor upon request.

• EPC C1G2 compliant
• ISO 18000-6 Type C compliant
• 160-bit EPC Bank: Up to 128-bit EPC
• 96-bit TID Bank: Up to 48-bit Serial Number
• Available User Memory: Up to 1008-bit Non
  Volatile User Data
• Long range in passive mode: 5m
• Extended range in battery assisted passive
  mode: 20m
• 3 axis magnetic field sensor
  Range:±12 gauss
  Sensitivity: 1mgauss
  - RMS noise: 5mgauss
• Pick to light indicator for visual identification
