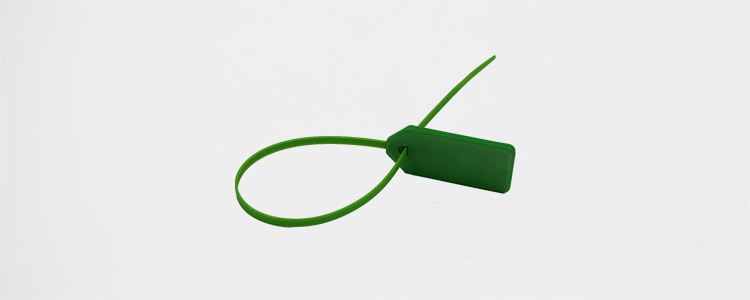

| RFID Features | Model | RC9003 |
| Air Interface Protocol | EPC Class 1 Gen 2 / ISO 18000-63 Type C | |
| Frequency | 860-960 MHz | |
| Chip Type | NXP Ucode 8/9 | |
| Memory | U8: User - N/A; EPC - 128 bits; TID - 96 bits U9: User - N/A; EPC - 96 bits; TID - 96 bits |
|
| Data Storage | > 10 years | |
| Re-write | 100,000 times | |
| Read Range(2W ERP) | U8 - FCC: > 9.0 m(29.5 ft) ; ETSI: > 11.0 m(36.1 ft) U9 - FCC: > 11.5 m(37.7 ft) ; ETSI: > 13.5 m(44.3 ft) |
|
| Physical Features | Head Dimension | 60 x 28.25 x 8.0 mm / 2.36 x 1.11 x 0.32 in |
| Belt Dimension | 285 x 4.6 x 1.25 mm / 11.22 x 0.18 x 0.05 in | |
| Material | PVC, Nylon | |
| Weight | 7.0 g | |
| Color | Green | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Survival Temperature | -40°C to 150°C / -40°F to 302°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| IP Rate | IP68, test for 5 hours at 1m deep water | |
| Other Features | Installation | Hang |
| Customization | Printing, Encoding, Design, etc. | |
| Package | 100 pcs / bag, 10 bags / box | |
| Application |
Logistics Management / Fixed asset Container Seal / Food Hygiene Control |
