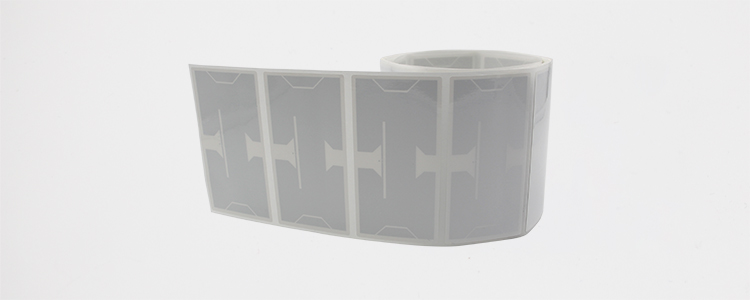

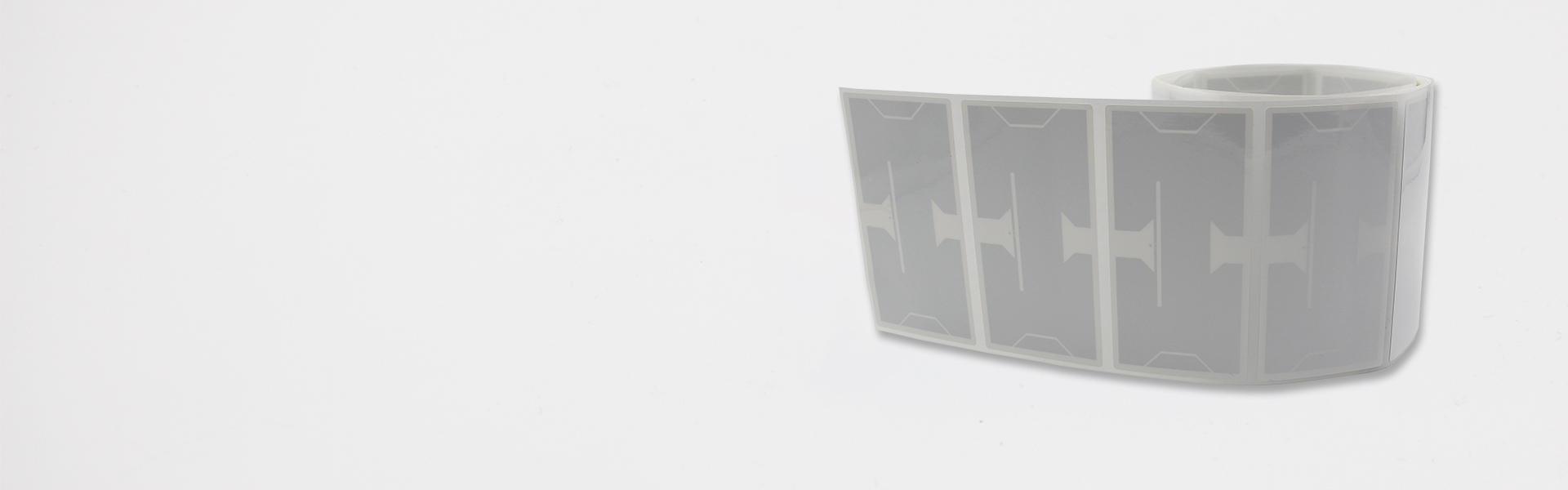

| RFID Features | Model | RC5053 |
| Air Interface Protocol | EPC Class 1 Gen 2 / ISO 18000-63 Type C | |
| Frequency | 860-960 MHz | |
| Chip Type | NXP Ucode 9 | |
| Memory | User - N/A; EPC - 96 bits; TID - 96 bits | |
| Data Storage | > 10 years | |
| Re-write | 100,000 times | |
| Read Range(2W ERP) | FCC: > 10.0 m(32.8 ft) , on rubber ETSI: > 9.5 m(31.2 ft) , on rubber |
|
| Physical Features | Dimension | 100 x 50 mm / 3.94 x 1.97 in |
| Material | Coated paper/PET | |
| Color | White | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Survival Temperature | -40°C to 100°C / -40°F to 212°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| IP Rate | IP68, test for 5 hours at 1m deep water | |
| Other Features | Installation | Adhesive(clean and dry surface) |
| Customization | Printing, Encoding, Design, etc. | |
| Package | 1,000 pcs / bag, 4 bags / box | |

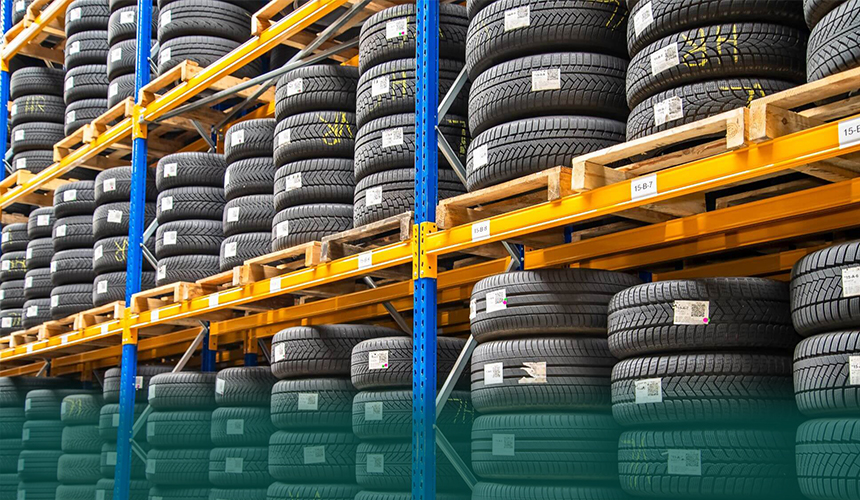

| Application | Vehicle and truck management Tire anti cloning and brand protection Tire inventory tracking and anti theft |
