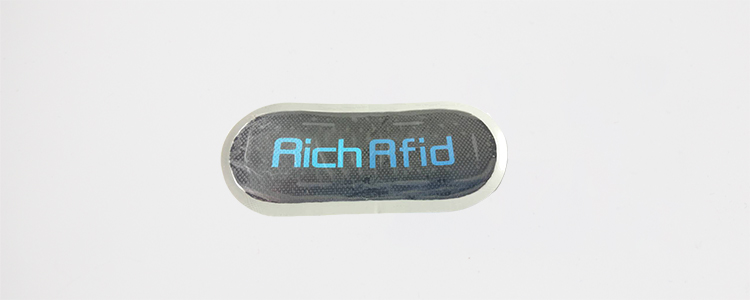

| RFID Features | Mdoel | RC9020-2 |
| Air Interface Protocol | EPC Class 1 Gen 2 / ISO 18000-63 Type C | |
| Frequency | 860-960 MHz | |
| Chip Type | Alien Higgs 9 | |
| Memory | User - 688 bits; EPC - 96 bits(up to 496 bits) | |
| Data Storage | > 10 years | |
| Re-write | 100,000 times | |
| Read Range(2W ERP) | FCC: > 3.8 m(12.5 ft) , on rubber ETSI: > 2.5 m(8.2 ft) , on rubber |
|
| Physical Features | Dimension | 85 x 38 x 2.5 mm / 3.35 x 1.50 x 0.10 in |
| Material | Rubber | |
| Weight | 5.0 g | |
| Color | Black | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Survival Temperature | -40°C to 230°C / -40°F to 446°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| IP Rate | IP68, test for 5 hours at 1m deep water | |
| Other Features | Installation | Fixed to the inner side wall using double curing glue or heating |
| Customization | Printing, Encoding, Design, etc. | |
| Package | 120 pcs / bag, 10 bags / box | |
| Application | Vehicle and truck management Tire anti cloning and brand protection Tire inventory tracking and anti theft |
