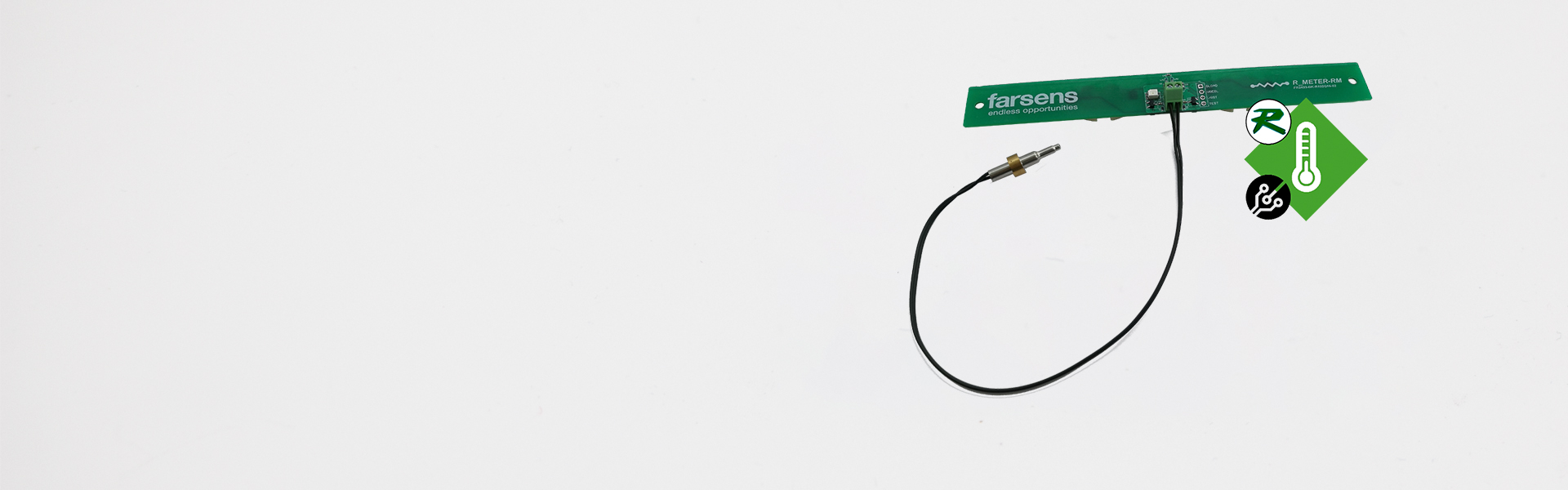

PYROS-RM-0373 is an EPC Class-1 Generation-2 (C1G2) RFID tag based on Farsens' batteryless sensor technology. Built in a compact PCB format, the tag includes a contact temperature sensor.
These RFID sensor tags are compatible with commercial UHF RFID readers (EPC C1G2). With a 2W ERP setup the battery-less orientation sensor can communicate to over 5 meters -16 feet.
he PYROS-RM-0373 can be customized with different antenna design and sizes, depending on the specific application. It can be encapsulated in an IP67
or IP68 casing for usage in harsh environments. It may also be possible to customize the specifications of the sensor upon request.
EPC C1G2 compliant
ISO 18000-6 Type C compliant
160-bit EPC Bank: Up to 128-bit EPC
96-bit TID Bank: Up to 48-bit Serial Number
Available User Memory: Up to 1008-bit Non Volatile User Data
Long range in passive mode: 5m
Extended range in battery assisted passive mode: 20m
