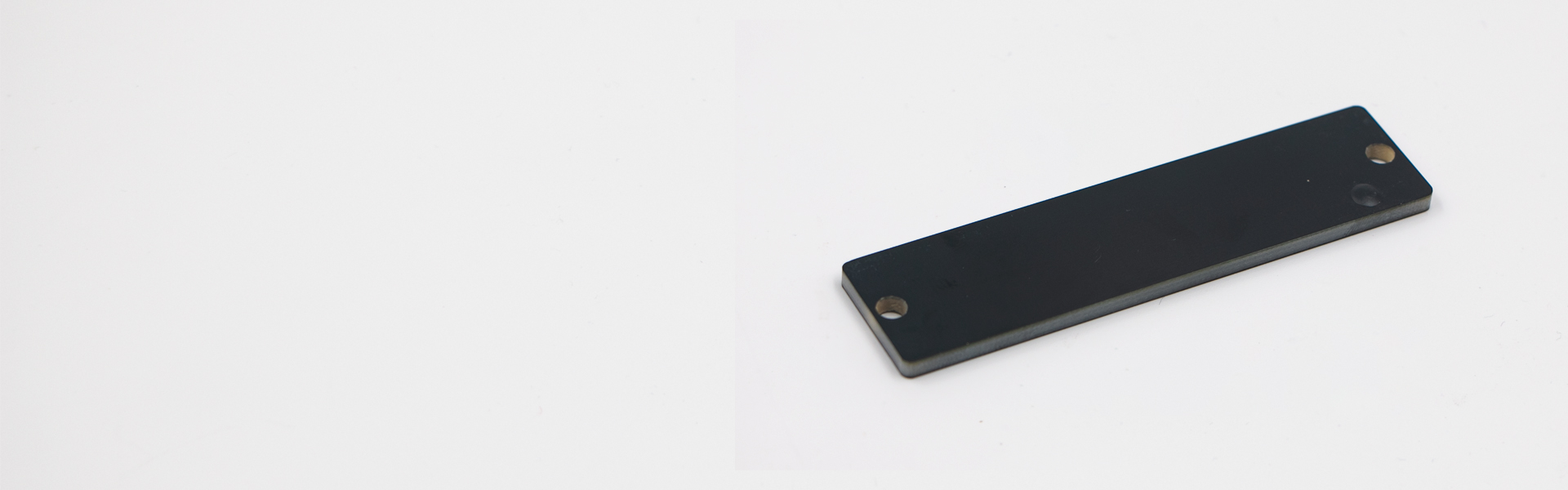

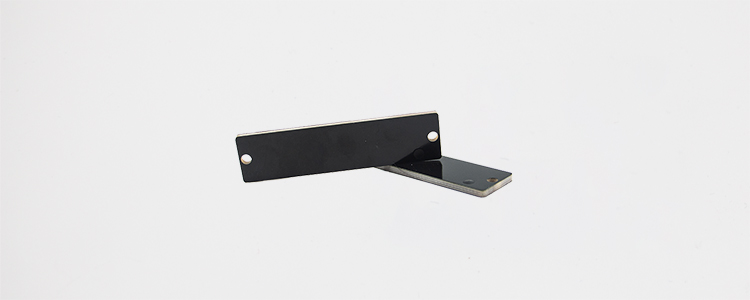

RFID Features Mdoel RCP8006
Air Interface Protocol EPC Class 1 Gen 2 / ISO 18000-63 Type C
Frequency 860-960 MHz
Chip Type NXP Ucode 8
Memory User - N/A; EPC - 128 bits; TID - 96 bits
Data Storage > 10 years
Re-write 100,000 times
Read Range(2W ERP) FCC: > 10.0 m(32.8 ft) , on metal
ETSI: > 5.8 m(19.0 ft) , on metal
Physical Features Dimension 80 x 20 x 3 mm / 3.15 x 0.79 x 0.12 in
Material FR-4
Weight 9.7 g
Color Black
Operating Temperature -40°C to 85°C / -40°F to 185°F
Survival Temperature -40°C to 150°C / -40°F to 302°F
Storage Condition 20±5℃, 50±10% RH, Store away from sunlight
IP Rate IP68, test for 5 hours at 1m deep water
Other Features Installation Adhesive(clean and dry surface), Rivet, Magnet, Screw
Customization Printing, Encoding, Design, etc.
Package 100 pcs / bag, 10 bags / box
Application Electricity and railway management | Industry automation management
Metallic Asset management | Shelf and tower management,etc
Application
Related industries
Industry 4.0
Radio frequency identification technology (RFID) currently plays an important role in asset management. It provides asset life cycle visibility, bringing real-time asset location information, error-free data capture, and ultimately enabling efficient asset management processes. Automated management of assets will save your organization labor, time and money.
Details
01 / 02
Asset Tracking
In modern warehouse storage, it is no longer enough to complete simple batch processing of goods in and out. It is crucial to clearly record the type, quantity, production attributes, stacking position and other information of goods in the warehouse. However, traditional asset management methods such as barcodes have gradually exposed defects such as poor resistance to dirt, small data storage capacity, short reading intervals, and inability to read in batches over long-term use, which has brought inconvenience to the inventory of fixed materials. In order to solve the problems of traditional asset management methods, RFID intelligent asset management systems came into being. RFID tags have the characteristics of high identification accuracy, reliable performance, large amount of stored information, and resistance to oil and sewage washing. They are especially suitable for automatic identification needs in industrial environments. , by using RFID tags to replace barcodes and other methods of identifying goods, the RFID intelligent asset management solution realizes automated management of warehousing, thereby realizing automatic collection, automatic processing and information reporting of goods information.
