| RFID Features | Model | RCO7030 |
| Air Interface Protocol | EPC Class 1 Gen 2 / ISO 18000-63 Type C | |
| Frequency | 860-960 MHz | |
| Chip Type | Impinj Monza R6P | |
| Memory | R6P: User - 32(64) bits; EPC - 128(96) bits; TID - 96 bits R6A: User - N/A; EPC - 96 bits; TID - 96 bits |
|
| Data Storage | > 100 years | |
| Re-write | 100,000 times | |
| Read Range(2W ERP) | FCC(R6P): > 5.5 m(18.0 ft), on metal ETSI(R6A): > 5.0 m(16.4 ft), on metal |
|
| Physical Features | Dimensions | 70 x 30 x 0.6 mm / 2.75 x 1.18 x 0.02 in |
| Face Material | White PET | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Survival Temperature | -40°C to 120°C / -40°F to 248°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| IP Rate | IP68, test for 5 hours at 1m deep water | |
| Other Features | Installation | Adhesive on clean & dry surface |
| Customization | Printing, Encoding, Designing, etc. | |
| Recommended Ribbon | Resin-based | |

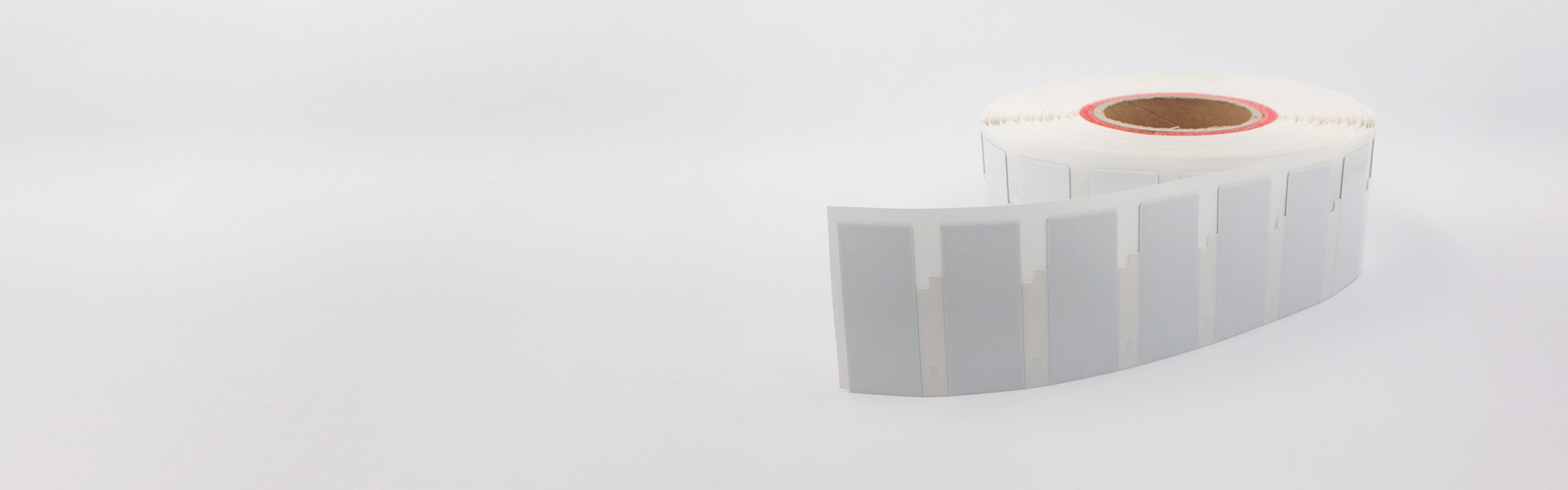

| Package | 500 pcs / roll, 4 rolls / box | |
| Application | Facility & equipment / Fixed asset Electronics / Liquid container / Metal parts |
