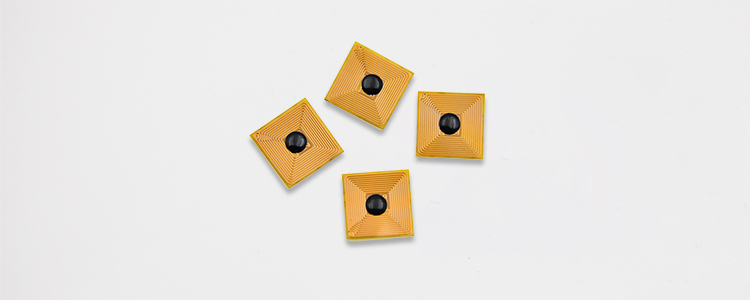

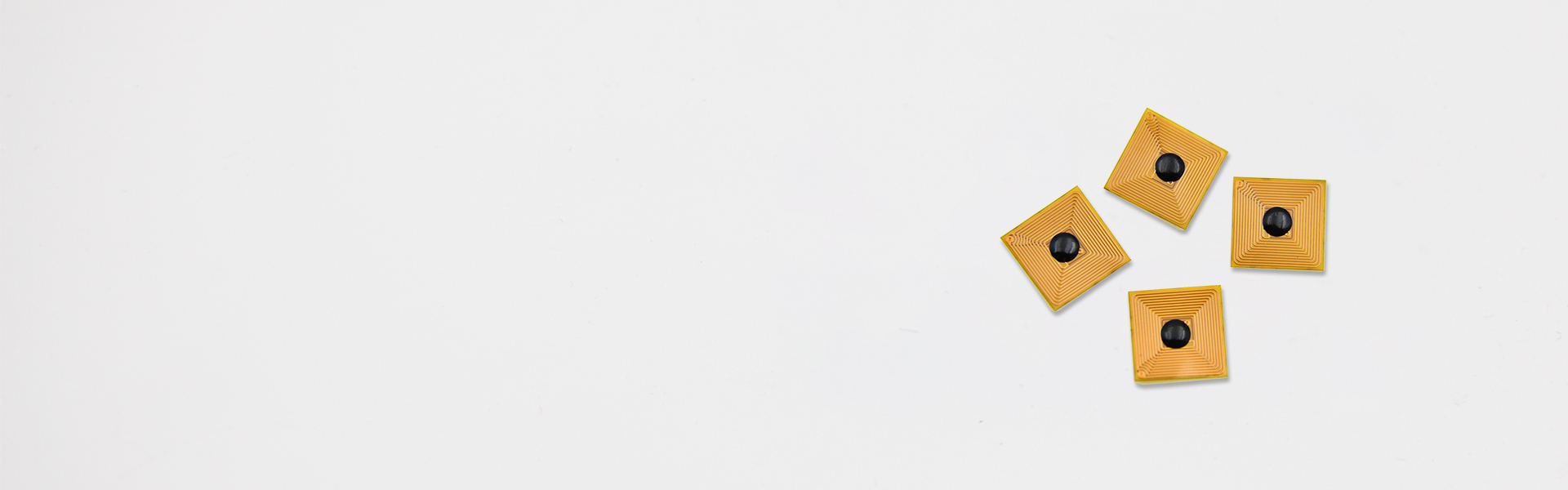

RFID Features Mdoel RCF2004
Air Interface Protocol ISO 15693
Frequency 13.56 MHz
Chip Type NXP Icode slix2
Memory 2560 bits
Data Storage > 10 years
Re-write 100,000 times
Read Range(13.56 MHz) 40.0 mm
Physical Features Dimension 10 x 10 mm / 0.39 x 0.39 in
Material FPC
Color Yellow
Operating Temperature -40°C to 85°C / -40°F to 185°F
Survival Temperature -40°C to 200°C / -40°F to 392°F
Storage Condition 20±5℃, 50±10% RH, Store away from sunlight
IP Rate IP68, test for 5 hours at 1m deep water
Other Features Installation Adhesive(clean and dry surface)
Certifications Reach, RoHS, CE
Package Single or roll
Application NFC wearable products / Electronic toys
Dangerous and safety items identification
Application
