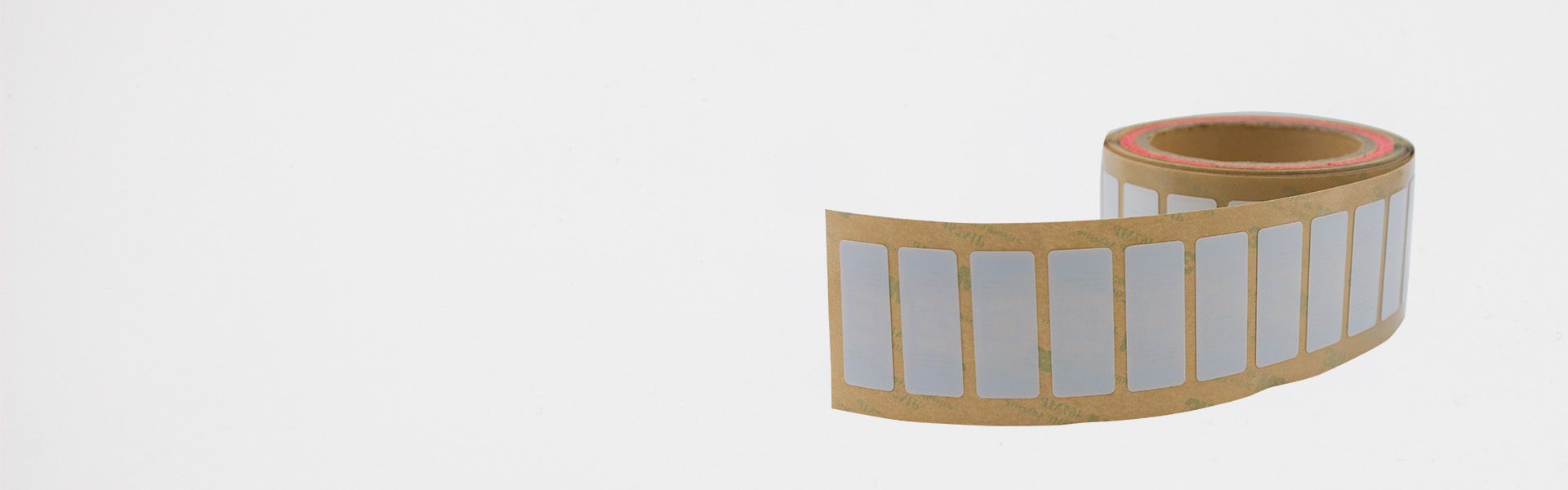

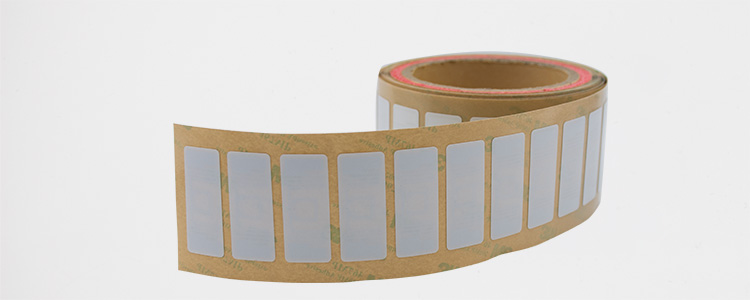

| RFID Features | Model | RC5001 |
| Frequency | 860-960 MHz | |
| Chip Type | Impinj Monza R6P | |
| Memory | User-32(64) bits; EPC- 128(96) bits; TID - 96 bits | |
| Data Storage | > 20 years | |
| Re-write | 100,000 times | |
| Read Range(2W ERP) | FCC: > 6.9 m, on cardboard; > 6.4 m, on PTFE ETSI: > 5.6 m, on cardboard; > 8.4 m on PTFE |
|
| Physical Features | Dimensions | 43 x 18 mm / 1.69 x 0.71 in |
| Material | Coated Paper | |
| Adhesive | Hot Melt | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| Other Features | Installation | Adhesive on clean & dry surface |
| Customization | Printing, Encoding, Designing, etc. | |
| Package | 2,500 pcs / roll, 4 rolls / box | |
| Application | Asset tracking / Vehicle winshield Anti-counterfeiting / Access control |
