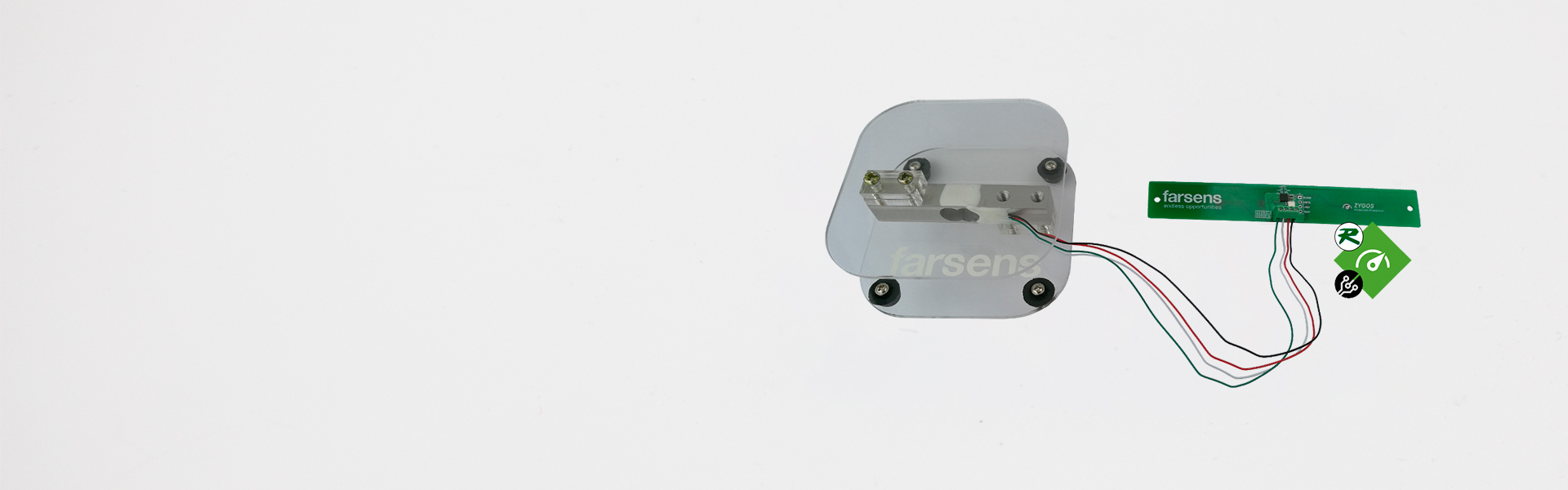

ZYGOS-RM is an EPC Class-1 Generation-2 (C1G2) RFID tag based on Farsens' batteryless sensor technology. Built in a compact PCB format, the tag includes a load cell sensor mounted on a scale.
These RFID sensor tags are compatible with commercial UHF RFID readers (EPC C1G2). With a 2W ERP setup the battery-less light sensor can communicate to over 5 meters -16 feet.
The ZYGOS-RM can be customized with different antenna design and sizes, depending on the specific application. It can be encapsulated in an IP67 or IP68casing for usage in harsh environments.

It may also bepossible to customize the specifications of the sensor upon request.

• EPC C1G2 compliant
  ISO 18000-6 Type C compliant
  160-bit EPC Bank: Up to 128-bit EPC
  96-bit TID Bank: Up to 48-bit Serial Number
  Available User Memory: Up to 1008-bit Non
  Volatile User Data
  Long range in passive mode: 5m
  Extended range in battery assisted passive mode: 20m
  Load sensor
  - Load range: 5 kg
  - Load accuracy: ±50 g
  Pick to light indicator for visual identification
