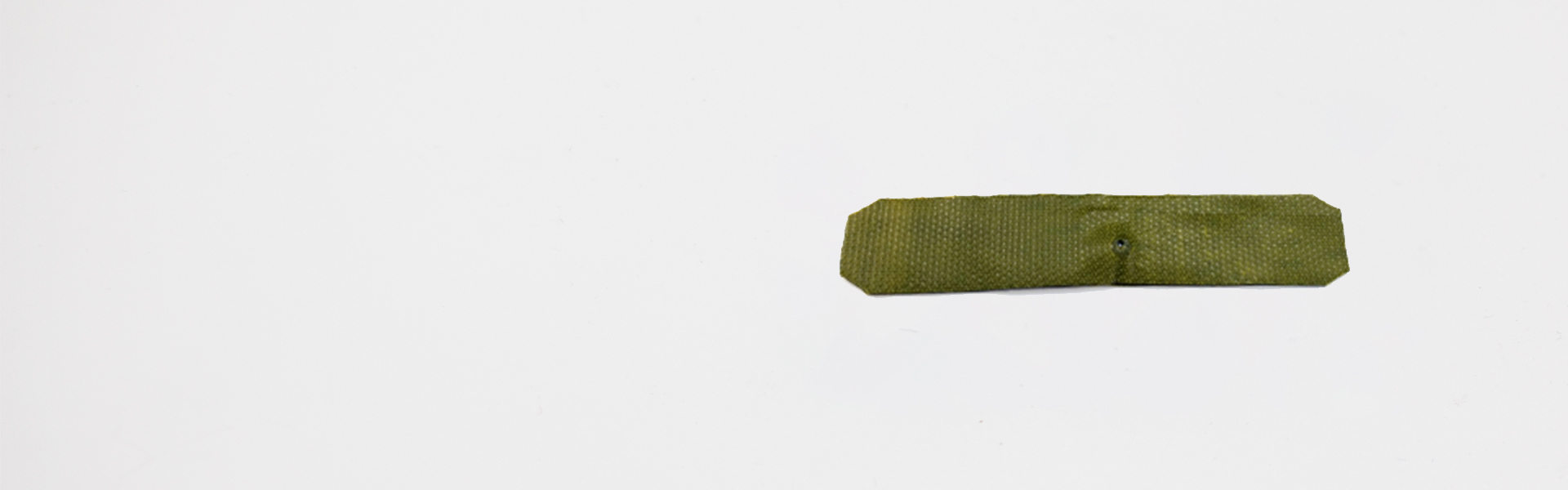

TRUCK-PT-RM is an EPC Class-1 Generation-2 (C1G2) RFID tag based on Farsens' batteryless sensor technology. Built in a compact PCB format,

the tag includes an absolute pressure sensor, an ambient temperature sensor and a contact temperature sensor.
These RFID sensor tags are compatible with commercial UHF RFID readers (EPC C1G2). With a 2W ERP setup the battery-less light sensor can communicate to over 5 meters -16 feet.
The TRUCK-PT-RM can be customized with different antenna design and sizes, depending on the specific application. It can be encapsulated in an IP67 or IP68casing for usage in harsh

environments. It may also bepossible to customize the specifications of the sensor upon request.

EPC C1G2 compliant
ISO 18000-6 Type C compliant
160-bit EPC Bank: Up to 128-bit EPC
96-bit TID Bank: Up to 48-bit Serial Number
Available User Memory: Up to 1008-bit Non
Volatile User Data
Long range in passive mode: 5m
Extended range in battery assisted passive
mode: 20m
Absolute pressure sensor
- Pressure range: 0 bar to 14 bar
- Pressure accuracy: ±140 mbar
Ambient temperature sensor
Temperature range: -40°C to 85°C
- Temperature accuracy: ±1°C
Contact temperature sensor
- Temperature range: -40°C to 85°C
- Temperature accuracy: ±1°C
Pick to light indicator for visual identification
