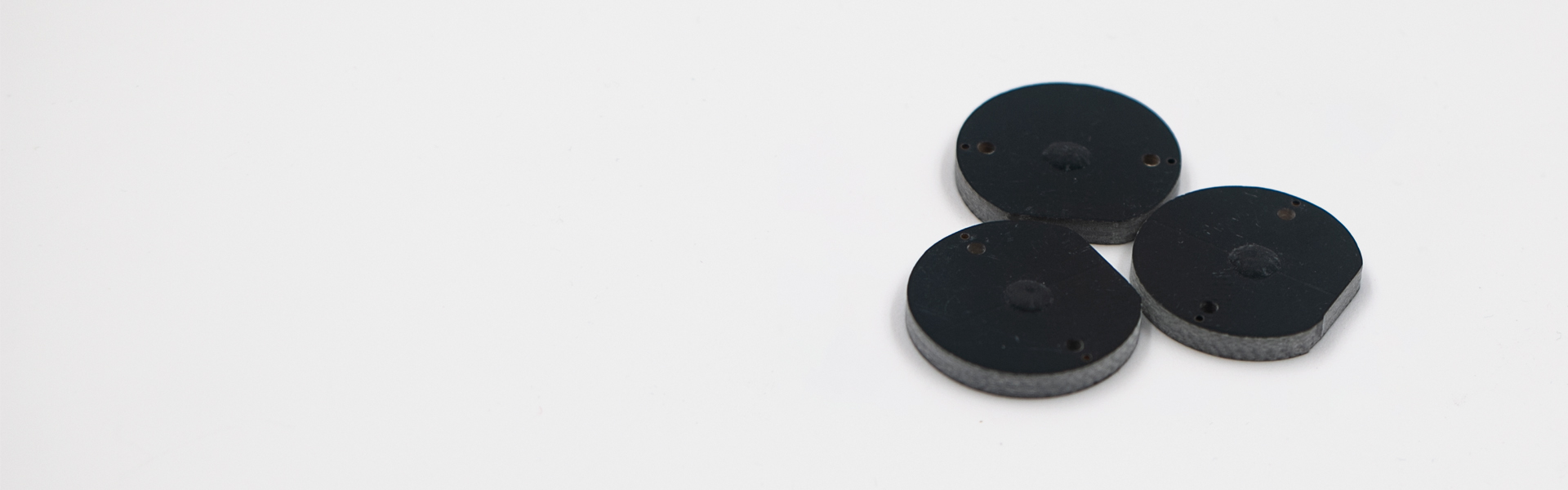

Small UHF PCB On-metal Tag

RCP8022 D16mm

Unlike flexible sticker-style RFID labels, these tags use PCB technology for the antenna and circuitry and are
constructed rigid material,making them extremely robust, compact, and often optimized for challenging
environments — especially when attached to metal surfaces, tools, industrial equipment,
or harsh conditions (high temperature,humidity, impact,vibration etc).

With multiple mounting options and support for global UHF RFID standards, this RFID PCB
tag integrates seamlessly into existing systems, offering accurate identification, improved
visibility, and reduced operational costs.

Specifications Application Related industries

Specifications

Contact

Datasheet

Portfolio

RFID Features	Mdoel	RCP8022
	Air Interface Protocol	EPC Class 1 Gen 2 / ISO 18000-63 Type C
	Frequency	860-960 MHz
	Chip Type	NXP Ucode 8
	Memory	User - N/A; EPC - 128 bits; TID - 96 bits
	Data Storage	> 10 years
	Re-write	100,000 times
	Read Range(2W ERP)	FCC: > 4.9 m(16.1 ft) , on metal
Physical Features	Dimension	D=16 x 2 mm / 0.63 x 0.08 in
	Material	FR-4
	Weight	0.9 g
	Color	Black
	Operating Temperature	-40°C to 85°C / -40°F to 185°F
	Survival Temperature	-40°C to 150°C / -40°F to 302°F
	Storage Condition	20±5℃, 50±10% RH, Store away from sunlight
	IP Rate	IP68, test for 5 hours at 1m deep water
Other Features	Installation	Adhesive(clean and dry surface), Rivet, Magnet, Screw
	Customization	Encoding, Design, etc.
	Package	500 pcs / bag, 10 bags / box
	Application	Device & tool / Electronics Mould / Metal part
