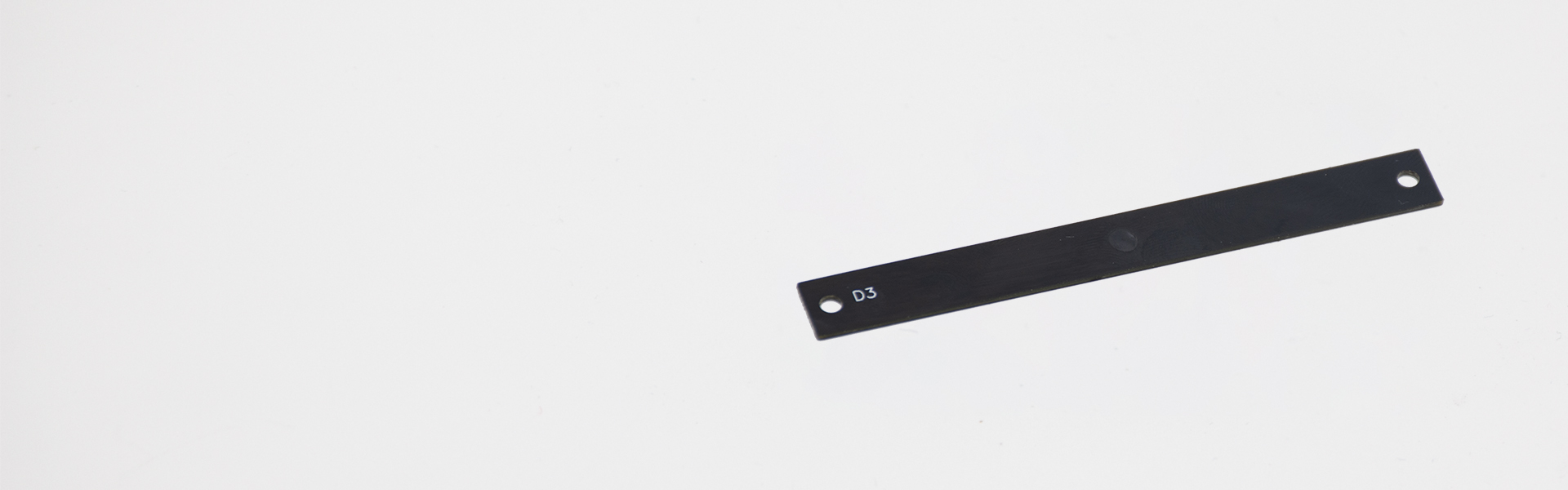

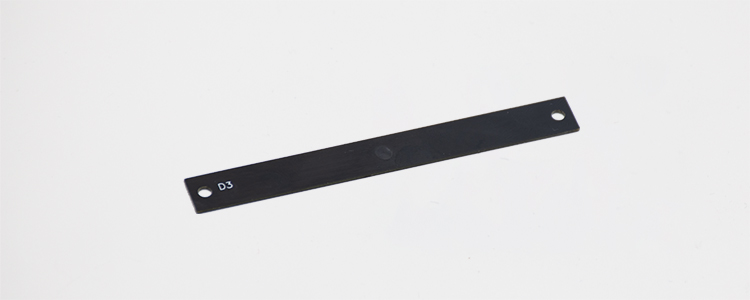

| Physical Features | Model | RCT10003 |
| Material | FR-4 | |
| Color | Black | |
| Dimensions | 90 x 10 x 1 mm(L x H x W) | |
| Weight | 2.0 g | |
| Working Temp | -40~+85℃ | |
| Survive Temp | -40~+150℃ | |
| IP Code | IP68 | |
| Humidity | 98% Non-condensing | |
| RFID Features | RFID Standard | EPC C1G2 (ISO18000-6C) |
| Chip Type | NXP Ucode 8 | |
| Memory | User - N/A; EPC-128 bits; TID-96 bits | |
| Read Range(Fixed Reader) |
US - 6.8 m, on cardboard; 16.0 m, on plastic EU - 7.5 m, on cardboard; 15.5 m, on plastic |
|
| Read Range(Handheld Reader) |
US - 10.0 m, on cardboard; 11.5 m, on plastic US - 9.0 m, on cardboard; 11.0 m, on plastic |
|
| Other Features | Data Storage | > 10 years |
| Re-write | 100000 times | |
| Installation | 3M adhesive, Rivet, Magnet, Screw | |
| Customization | Printing LOGO, Barcode, Serial number, Encoding, Designing,etc | |
| Application |

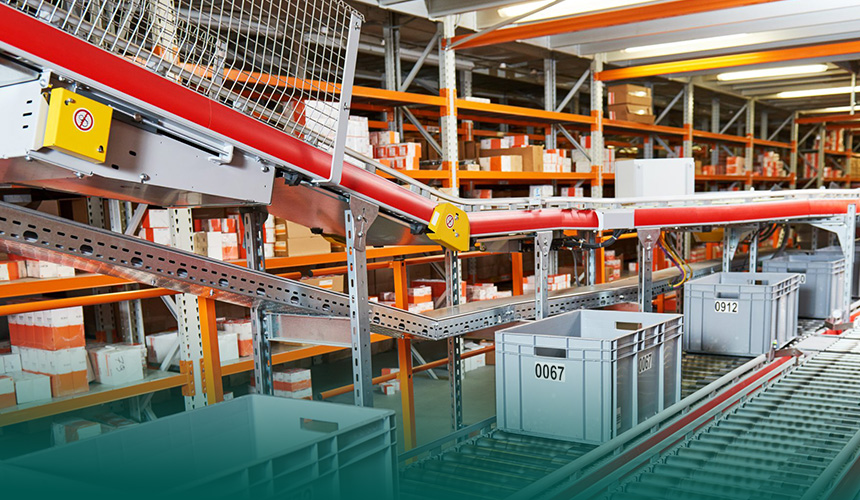

Wooden pallet identification | Plastic pallet tracking Non-metal assets management | High temperature asset tracking,etc |
