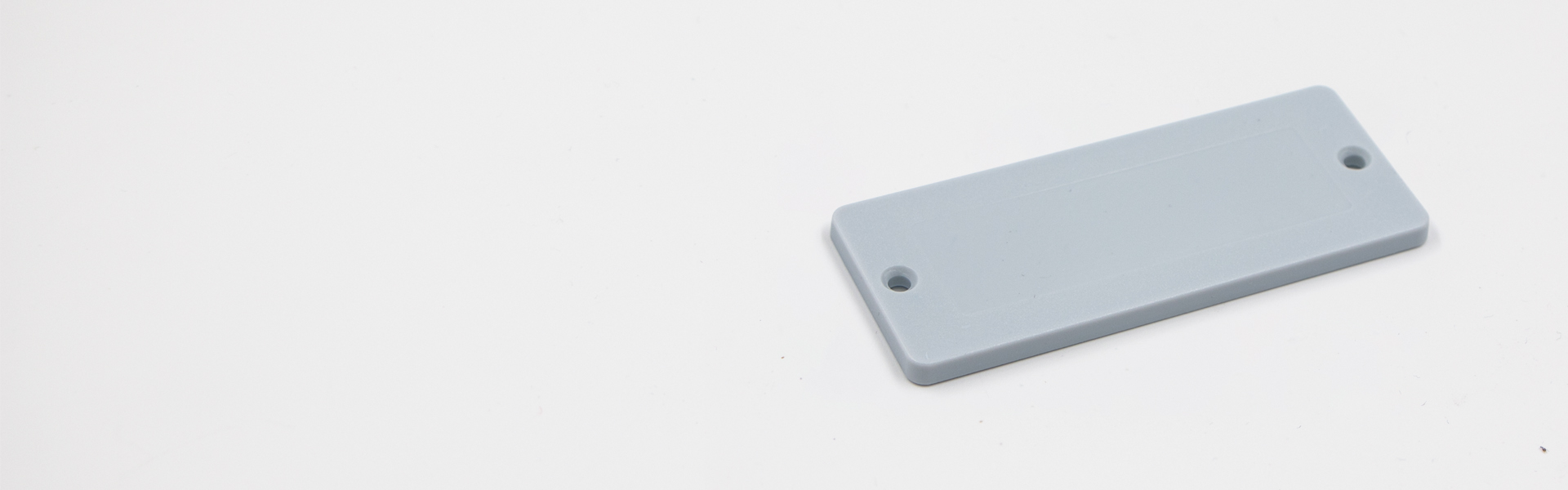

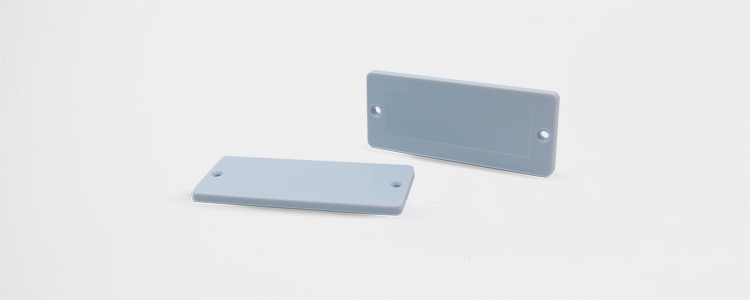

Physical Features | Model | RCP8015 |
Material | Engineering Plastics | |
Color | Gray or Others | |
Dimensions | 88 x 37 x 4 mm(L x W x T) | |
Weight | 10.5 g | |
Working Temp | -40~+85℃ | |
Survive Temp | -40~+150℃ | |
IP Code | IP68 | |
Humidity | 98% Non-condensing | |
RFID Features | RFID Standard | EPC C1G2 (ISO18000-6C) |
Chip Type | Impinj Monza R6P | |
Memory | User -32(64) bits; EPC – 128(96) bits; TID - 48 bits | |
Read Range(Fixed Reader FCC) | 8.5 m, on metal | |
Read Range(Fixed Reader ETSI) | 7.0 m, on metal | |
Other Features | Data Storage | > 10 years |
Re-write | 100000 times | |
Installation | 3M adhesive, Rivet, Magnet, Screw | |
Customization | Printing LOGO, Barcode, Serial number, Encoding, Designing,etc | |
Application | Oil & Gas & Mining | Industry equipment Cargo Container Tracking | Logistics and warehouse, etc. |
