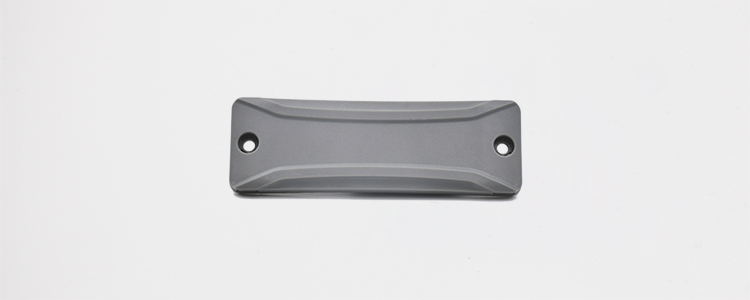

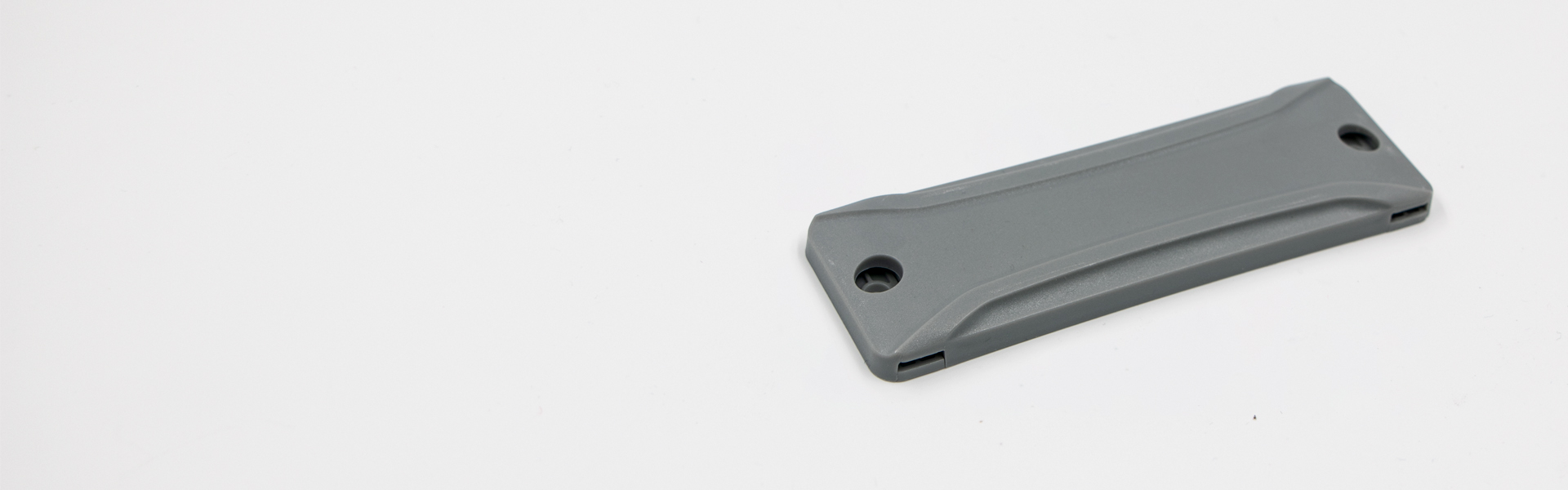

| RFID Features | Mdoel | RCP8016 |
| Air Interface Protocol | EPC Class 1 Gen 2 / ISO 18000-63 Type C | |
| Frequency | 860-960 MHz | |
| Chip Type | impinj Monza 4QT | |
| Memory | User - 512 bits; EPC - 128 bits; TID - 96 bits | |
| Data Storage | > 10 years | |
| Re-write | 100,000 times | |
| Read Range(2W ERP) | FCC: > 21.0 m(68.9 ft) , on metal ETSI: > 19.0 m(62.3 ft) , on metal |
|
| Physical Features | Dimension | 136 x 43 x 10.3 mm / 5.35 x 1.69 x 0.41 in |
| Material | Engineering Plastics | |
| Weight | 42.8 g | |
| Color | Gray or Customization | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Survival Temperature | -40°C to 120°C / -40°F to 248°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| IP Rate | IP68, test for 5 hours at 1m deep water | |
| Other Features | Installation | Adhesive(clean and dry surface), Rivet, Magnet, Screw |
| Customization | Printing, Encoding, Design, etc. | |
| Package | 400 pcs / bag, 8 bags / box | |
| Application | Construction & heavy equipment / Oil, gas, energy facility Automotive & aerospace fixture / Container & storage rack |
