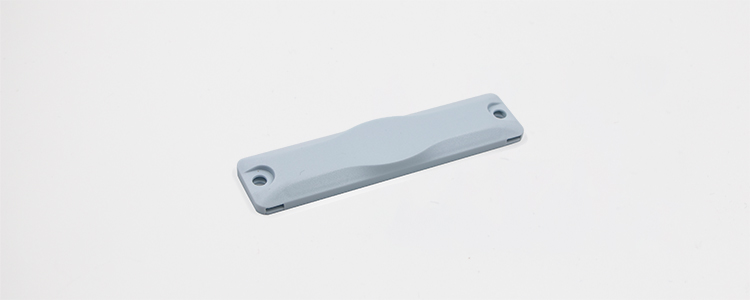

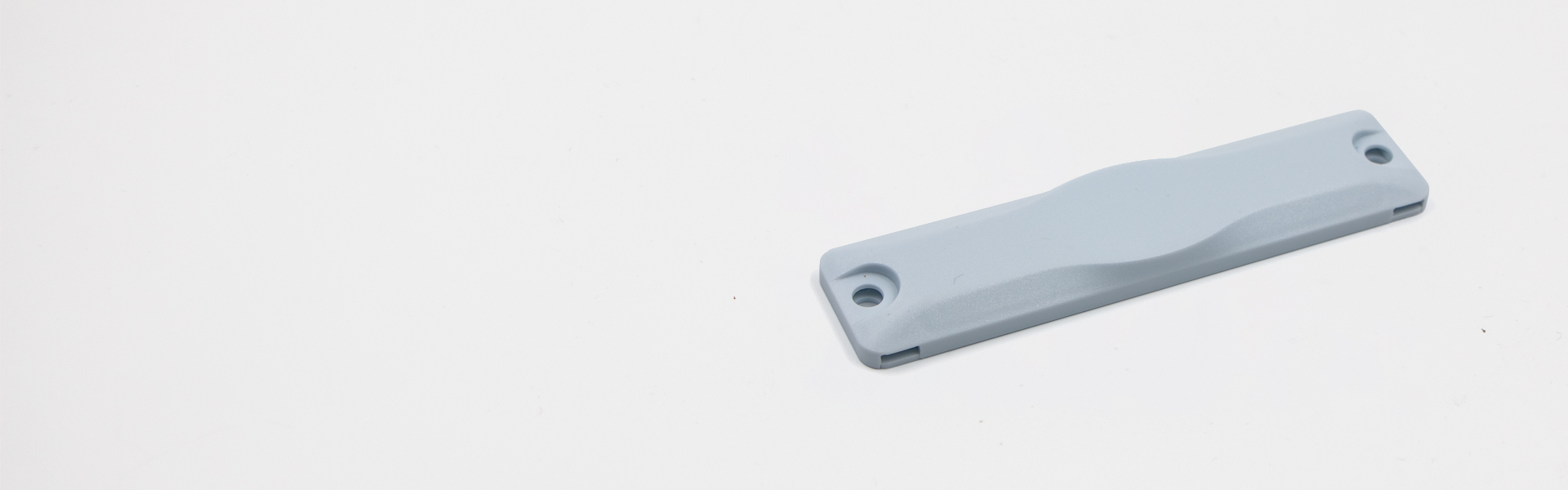

| RFID Features | Mdoel | RCP8011 |
| Air Interface Protocol | EPC Class 1 Gen 2 / ISO 18000-63 Type C | |
| Frequency | 860-960 MHz | |
| Chip Type | NXP Ucode 8 | |
| Memory | User - N/A; EPC - 128 bits; TID - 96 bits | |
| Data Storage | > 10 years | |
| Re-write | 100,000 times | |
| Read Range(2W ERP) | FCC: > 27.3 m(89.6 ft) , on metal ETSI: > 26.5 m(86.9 ft) , on metal |
|
| Physical Features | Dimension | 128 x 30 x 8.5 mm / 5.04 x 1.18 x 0.34 in |
| Material | Engineering Plastics | |
| Weight | 18.2 g | |
| Color | Light Blue | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Survival Temperature | -40°C to 120°C / -40°F to 248°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| IP Rate | IP68, test for 5 hours at 1m deep water | |
| Other Features | Installation | Adhesive(clean and dry surface), Rivet, Magnet, Screw |
| Customization | Printing, Encoding, Design, etc. | |
| Package | 50 pcs / bag, 10 bags / box | |
| Application | Construction & heavy equipment / Oil, gas, energy facility Automotive & aerospace fixture / Container & storage rack |
