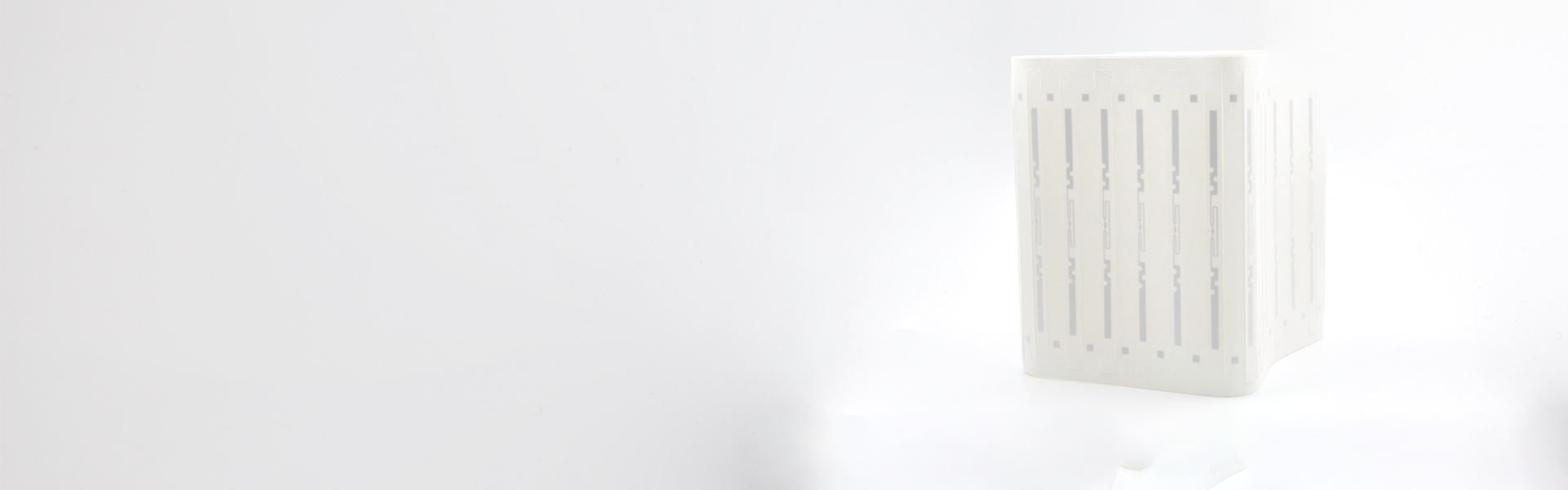

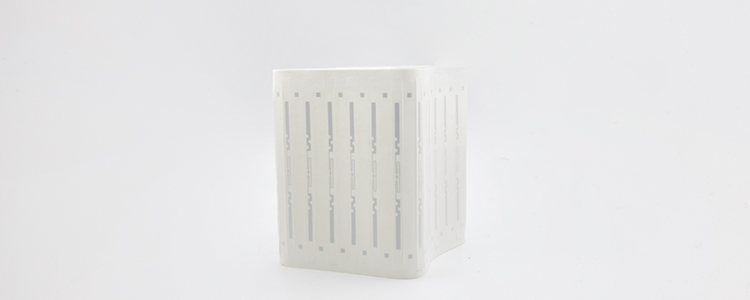

RFID Features Model RC9019
Frequency 860-960 MHz
Chip Type NXP Ucode 9
Memory User - N/A; EPC - 96 bits; TID - 96 bits
Data Storage > 10 years
Re-write 100,000 times
Read Range(2W ERP) FCC: > 16.0 m, on cardboard
ETSI: > 9.5 m, on cardboard
Physical Features Dimensions 125 x 7 mm / 4.92 x 0.28 in
Material Coated Paper
Adhesive Hot Melt
Operating Temperature -40°C to 85°C / -40°F to 185°F
Storage Condition 20±5℃, 50±10% RH, Store away from sunlight
Other Features Installation Adhesive on clean & dry surface
Customization Printing, Encoding, Designing, etc.
Package 2,500 pcs / roll, 4 rolls / box
Application Book & Archive
Application
