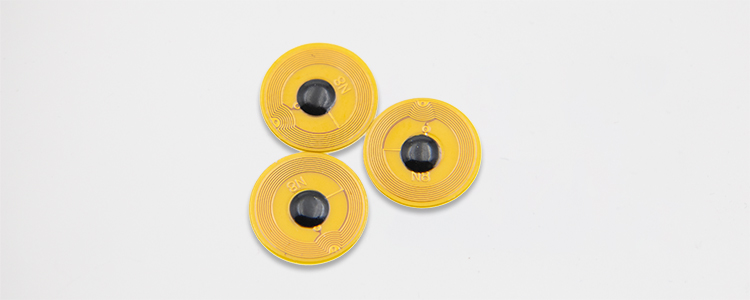

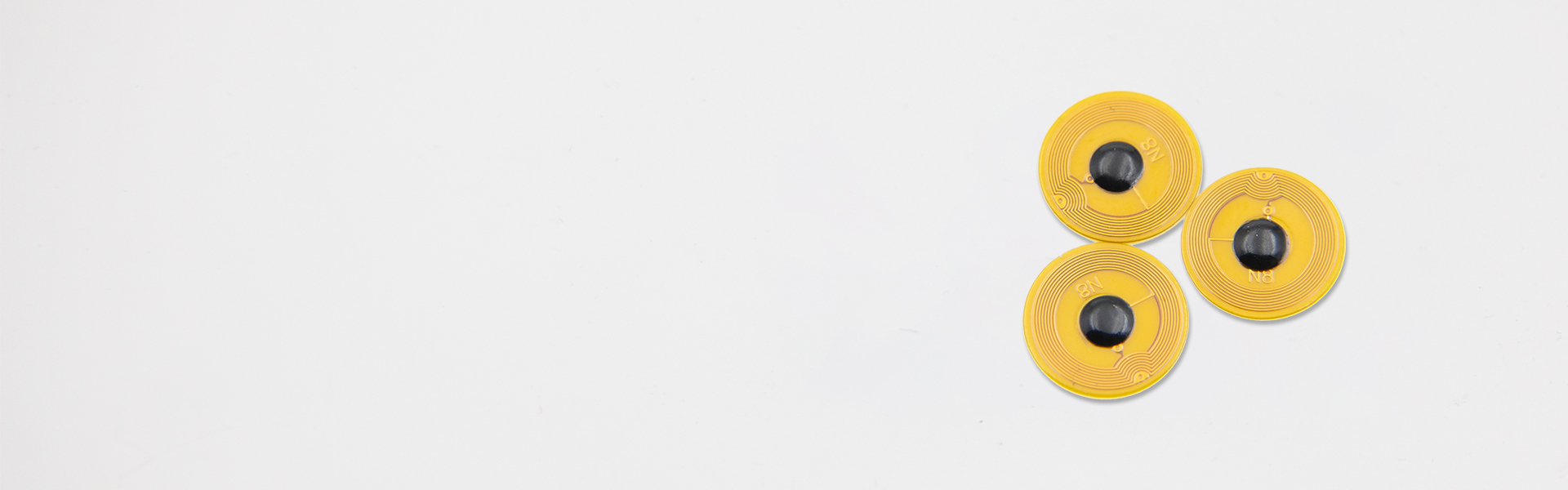

| RFID Features | Mdoel | RCF2001 |
| Air Interface Protocol | ISO 14443A | |
| Frequency | 13.56 MHz | |
| Chip Type | NXP Ntag213 | |
| Memory | 144 bytes | |
| Data Storage | > 10 years | |
| Re-write | 100,000 times | |
| Read Range(13.56 MHz) | 18 mm | |
| Physical Features | Dimension | D=8 mm / 0.32 in |
| Thickness | 0.66±0.02 mm(0.03 in)on chip location only, Rest of tag is 0.27±0.02 mm(0.01 in) |
|
| Material | FPC | |
| Color | Yellow | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Survival Temperature | -40°C to 200°C / -40°F to 392°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| IP Rate | IP68, test for 5 hours at 1m deep water | |
| Other Features | Installation | Adhesive(clean and dry surface) |
| Certifications | Reach, RoHS, CE | |
| Package | Single or roll | |
| Application | NFC wearable products / Electronic toys Dangerous and safety items identification |
