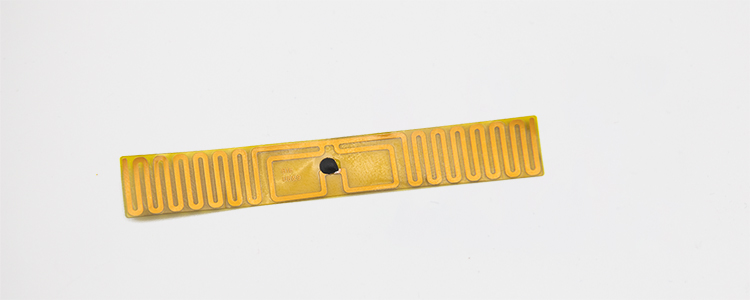

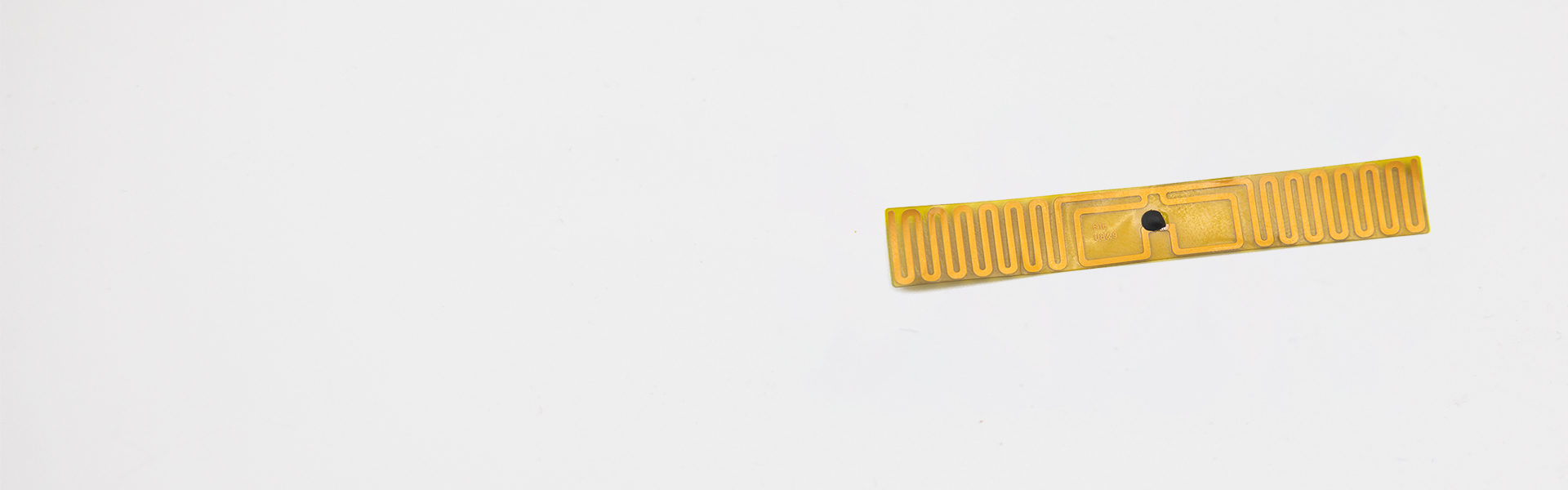

| RFID Features | Mdoel | RCF2101 |
| Air Interface Protocol | EPC Class 1 Gen 2 / ISO 18000-63 Type C | |
| Frequency | 860-960 MHz | |
| Chip Type | Impinj M830 | |
| Memory | User - N/A; EPC - 128 bits; TID - 96 bits | |
| Data Storage | > 10 years | |
| Re-write | 100,000 times | |
| Read Range(13.56 MHz) | FCC: > 15.4 m(50.5 ft) , on PTFE ETSI: > 14.3 m(46.9 ft) , on PTFE |
|
| Physical Features | Dimension | 68 x 10 mm / 2.68 x 0.39 in |
| Material | FPC | |
| Color | Yellow | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Survival Temperature | -40°C to 200°C / -40°F to 392°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| IP Rate | IP68, test for 5 hours at 1m deep water | |
| Other Features | Installation | Adhesive(clean and dry surface) |
| Certifications | Reach, RoHS, CE | |
| Package | Single or roll | |
| Application | Identity recognition Logistics and tracking system Anti-counterfeiting traceability |
