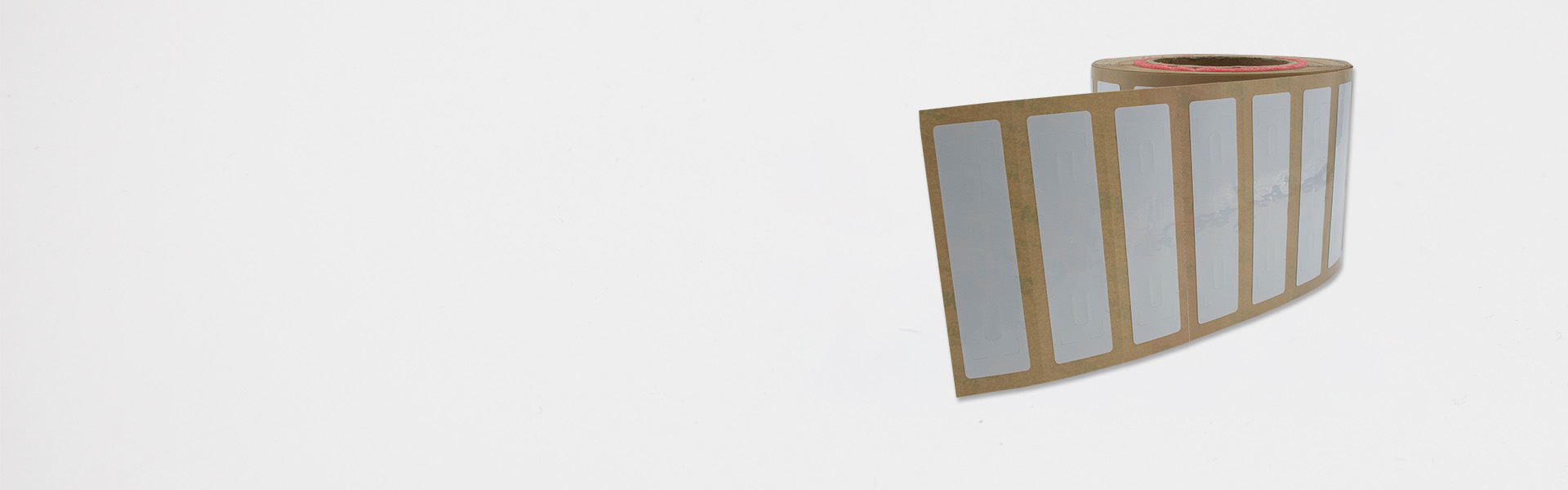

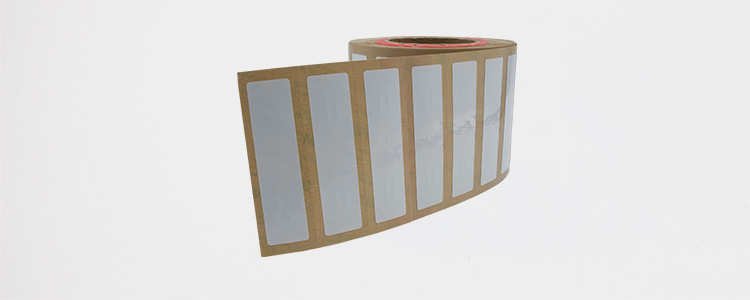

| RFID Features | Model | RC5019 |
| Frequency | 860-960 MHz | |
| Chip Type | Impinj M830 | |
| Memory | User-N/A; EPC- 128 bits; TID - 96 bits | |
| Data Storage | > 20 years | |
| Re-write | 100,000 times | |
| Read Range(2W ERP) | FCC: > 19.0 m, on glass ETSI: > 17.5 m, on glass |
|
| Physical Features | Dimensions | 97 x 25 mm / 3.82 x 0.98 in |
| Material | PET | |
| Adhesive | Double-sided tape | |
| Operating Temperature | -40°C to 85°C / -40°F to 185°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| Other Features | Installation | Adhesive on clean & dry surface |
| Customization | Printing, Encoding, Designing, etc. | |
| Package | 2,500 pcs / roll, 4 rolls / box | |
| Application | Asset tracking / Vehicle winshield Anti-counterfeiting / Access control |
