| Chip Type | EM4425 | |
| Memory | UID-64 bits, TID- 96 bits 2048-bits used for HF +UHF User memory |
|
| Model | —— | RC5131 |

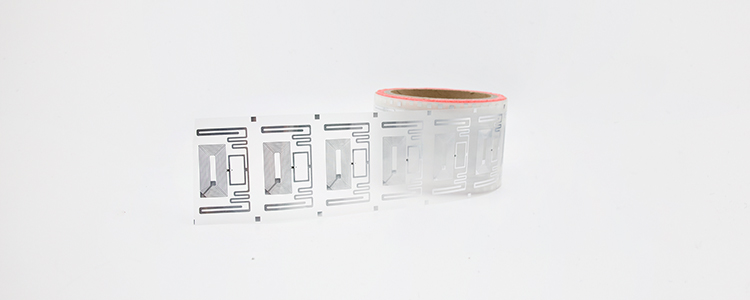

| Delivery Format | Dry Inlay | Label |
| Die-Cut Dimension | —— | 54 x 34 mm / 2.13 x 1.34 in |
| Inlay Substrate | 50 um PET | 50 um PET |
| Face Material | —— | Coated Paper |
| Adhesive | —— | Hot Melt |
| Standard Pitch | 38 mm / 1.5 in | 38 mm / 1.5 in |
| Web Width | 63 mm / 2.48 in | 67 mm / 2.60 in |
| Core inner Diameter | 76.2 mm / 3.0 in | 76.2 mm / 3.0 in |
| Operating temperature | -40°C to 85°C / -40°F to 185°F | |
| Storage Condition | 20±5℃, 50±10% RH, Store away from sunlight | |
| Installation | —— | Adhesive on clean & dry surface |
| Customization | Encoding, Designing, etc. | Printing, Encoding, Designing, etc. |
| Package | 10,000 pcs / roll, 4 rolls / box | 2,500 pcs / roll, 4 rolls / box |
| Application | Non-metal | |
