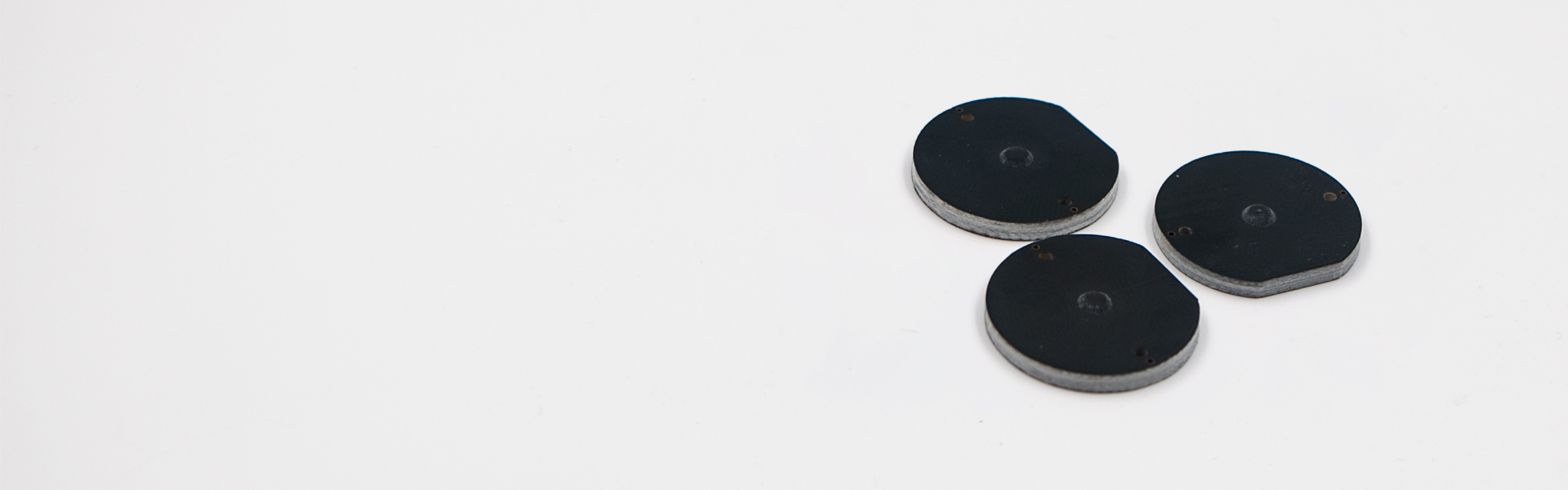

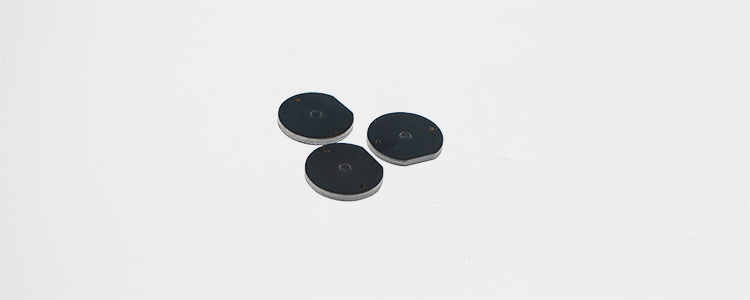

Physical Features | Model | RCP8035 |
Material | FR-4 | |
Color | Black | |
Dimensions | D=20 x 2 mm(L x W x T) | |
Weight | 1.5 g | |
Working Temp | -40~+85℃ | |
Survive Temp | -40~+150℃ | |
IP Code | IP68 | |
Humidity | 98% Non-condensing | |
RFID Features | RFID Standard | EPC C1G2 (ISO18000-6C) |
Chip Type | NXP Ucode 8 | |
Memory | User -N/A; EPC - 128 bits; TID - 96 bits | |
Read Range(Fixed Reader) | FCC: 6.6 m, on metal; ETSI: 6.5 m, on metal | |
Read Range(Handheld Reader) | FCC: 2.5 m, on metal; ETSI: 2.5 m, on metal | |
Other Features | Data Storage | > 10 years |
Re-write | 100000 times | |
Installation | 3M adhesive, Rivet, Magnet, Screw | |
Customization | Printing LOGO, Barcode, Serial number, Encoding, Designing,etc | |
Application | Electricity and railway management | Industry automation management Metallic Asset management | Tool tracking,etc |
