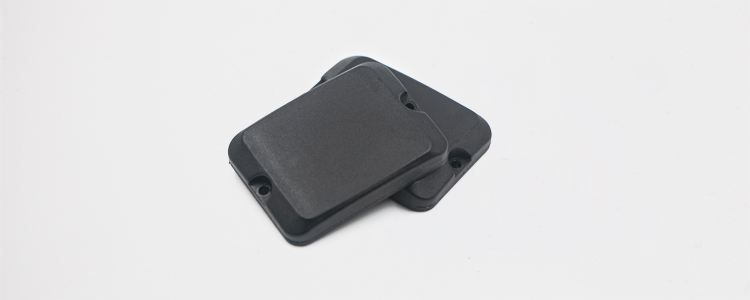

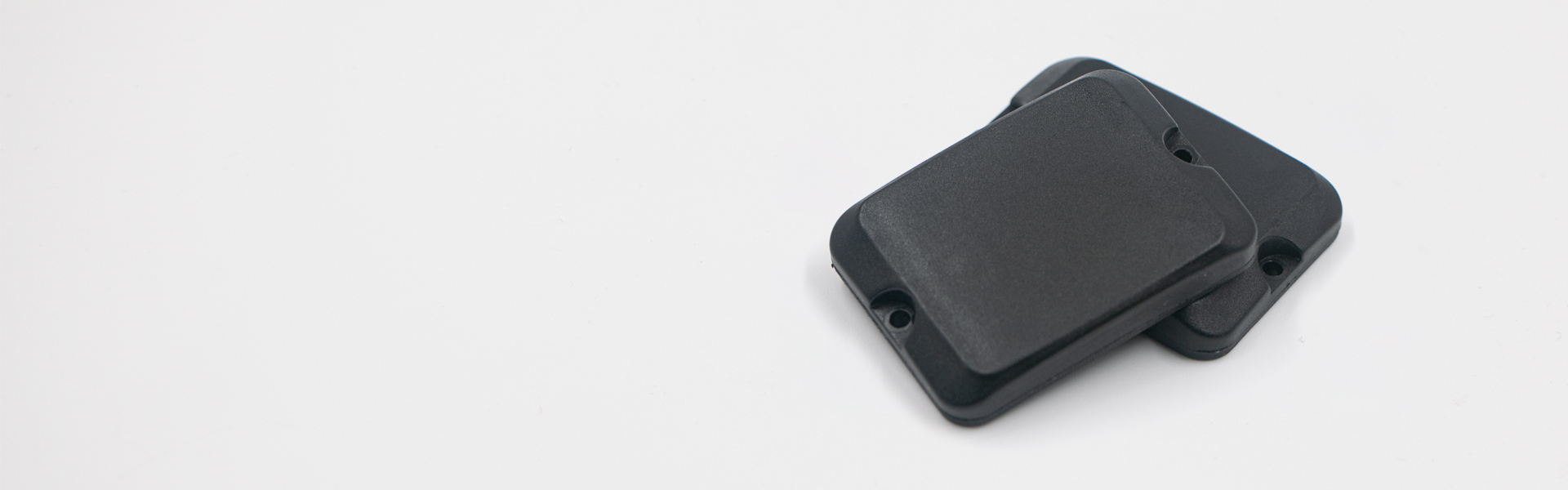

Physical Features | Model | RCP8009-1 |
Material | Engineering Plastics | |
Color | Gray or Black | |
Dimensions | 47.87 x 35 x 7.8 mm(L x W x T) | |
Weight | 20 g | |
Working Temp | -40~+85℃ | |
Survive Temp | -40~+225℃ | |
IP Code | IP68 | |
Humidity | 98% Non-condensing | |
RFID Features | RFID Standard | EPC C1G2 (ISO18000-6C) |
Chip Type | Alien Higgs 3 | |
Memory | User -512 bits; EPC - 96 bits; TID - 32 bits | |
Read Range(Fixed Reade FCC) | 9.5 m, on metal | |
Read Range(Fixed Reade ETSI) | 7.0 m, on metal | |
Other Features | Data Storage | > 10 years |
Re-write | 100000 times | |
Installation | 3M adhesive, Screw, Magnet | |
Customization | Printing LOGO, Barcode, Serial number, Encoding, Designing,etc | |
Application |
Oil & Gas & Mining | Metal Equipments Management | |
