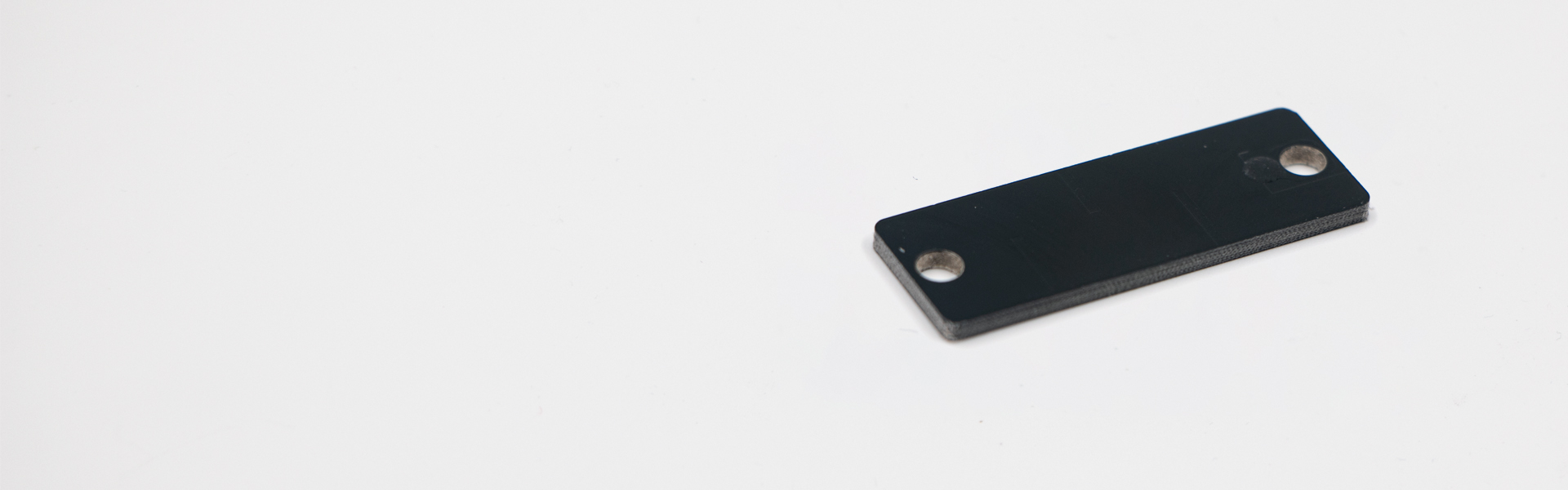

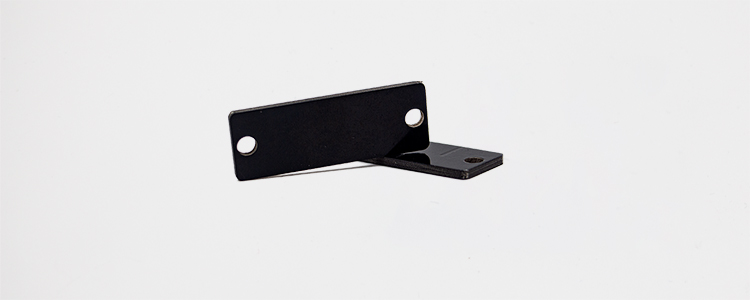

Physical Features Model RCP8039 Pro
Material PTFE
Color Black
Dimensions 42 x 15 x 2 mm(L x W x T)
Weight 3.0 g
Working Temp -40~+100℃
Ultimate  Temp 180℃/10 hours;  250℃/150minutes; 280℃/50 minutes
IP Code IP68
Humidity 98% Non-condensing
RFID Features RFID Standard EPC C1G2 (ISO18000-6C)
Chip Type NXP Ucode 8
Memory User -N/A; EPC - 128 bits; TID - 96 bits
Read Range(Fixed Reader) FCC: 11 m, on metal; ETSI: 9.0 m, on metal
Read Range(Handheld Reader) FCC: 6.0 m, on metal; ETSI: 6.0 m, on metal
Other Features Data Storage > 10 years
Re-write 100000 times
Installation 3M adhesive, Rivet, Magnet, Screw
Customization Printing LOGO, Barcode, Serial number, Encoding, Designing,etc
Application Electricity and railway management | Industry automation management
Metallic Asset management | Tool tracking,etc
