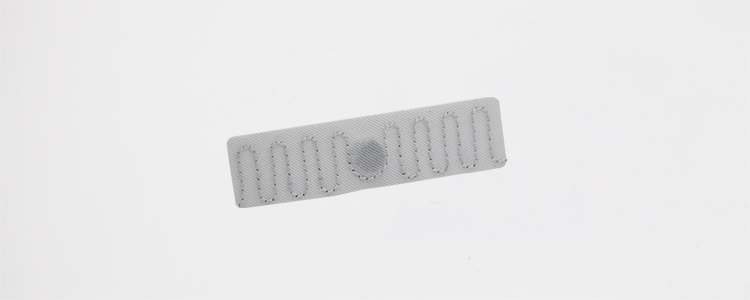

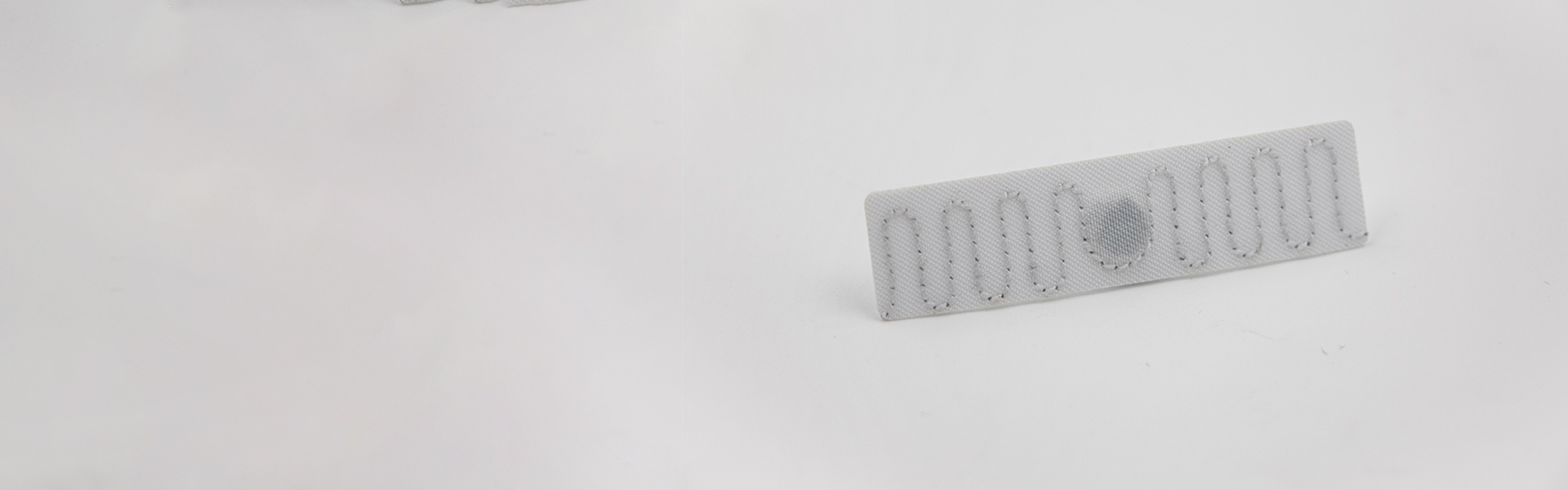

Physical Features Model Aqua LA105
Material Polyester
Length x Width 58 x 15 mm (2.3 x 0.6 in)
Thickness 1.8 mm(0.07 in) on chip location only,
Rest of tag is 0.75 mm(0.03 in)
Weight 0.5 g
RFID Features: RFID  Standard EPC C1G2 (ISO18000-6C)
Frequency 860-960 MHz(worldwide)
Chip Type NXP Ucode 8
Memory User -N/A; EPC - 128 bits; TID - 96 bits
Data Storage > 20 years
Re-write 100,000 times
Read Range(Fixed Reader) US: >12.5 m(41 ft); EU: >9 m(30 ft)
Read Range(Handheld Reader) US: >8.5 m(28 ft); EU: >6 m(20 ft)
Other Features: Installation Sew:Sewn inside the hem or pouch
Heat-sealing:Heat-seal the tag onto the textile at 210°C
and 0.6-0.8 MPa for 20 seconds
Warranty 200 washing cycles or 3 years, whichever comes first
Washing Method Laundry, Dry cleaning
Water Extraction pressure 60 bars
 Chemical Resistance Detergent, Softener, Bleach (Oxygen/ Chlorine), Alkali
Washing Temperature 90°C (194°F)/15 minutes
Pre-drying in Tumble 180°C (356°F)/30 minutes
Ironing Tempereature 185°C (365°F)/10 seconds
Sterilization Tempereature 135°℃ (275°F)/20 minutes
Humidity/ Temperature-Operating -20~+85℃(-4~185℉)/  8-95%RH
Personalization Serial number, LOGO printing, Encoding, Antenna design.etc
Applications Industrial washing/Management of uniforms
Medical apparel management/Military clothing management
Application
Related industries
Digital HealthCare
As the scale of hospitals and the scope of diagnosis and treatment continue to expand, in medical management centers, many hospitals still use traditional manual record management methods to manage consumables and surgical gowns. There are many types of consumables and confusing names, which can easily lead to false claims and missing records. Problems such as registration errors and difficulty in tracing items lead to heavy workloads for nurses, cumbersome work processes, and backlogs and shortages of valuable consumables, resulting in increased management costs. The core of smart medical care is "patient-oriented". It uses advanced Internet of Things technology and RFID to realize the interaction between patients and medical staff, medical institutions, and medical equipment. It gradually reaches informatization and realizes the control of every step in the operation. Real-time monitoring of data, including drug supervision, disease diagnosis and treatment, equipment management, etc.
Details
01 / 02
Smart Laundry
Give each piece of linen a unique RFID digital identity, and use industry-leading data collection equipment to collect status information of linen in every handover link and every washing process in real time; rely on powerful data analysis tools to achieve full monitoring of linen Process and full life cycle management can help operators improve linen circulation efficiency, reduce labor costs, and improve customer satisfaction.
