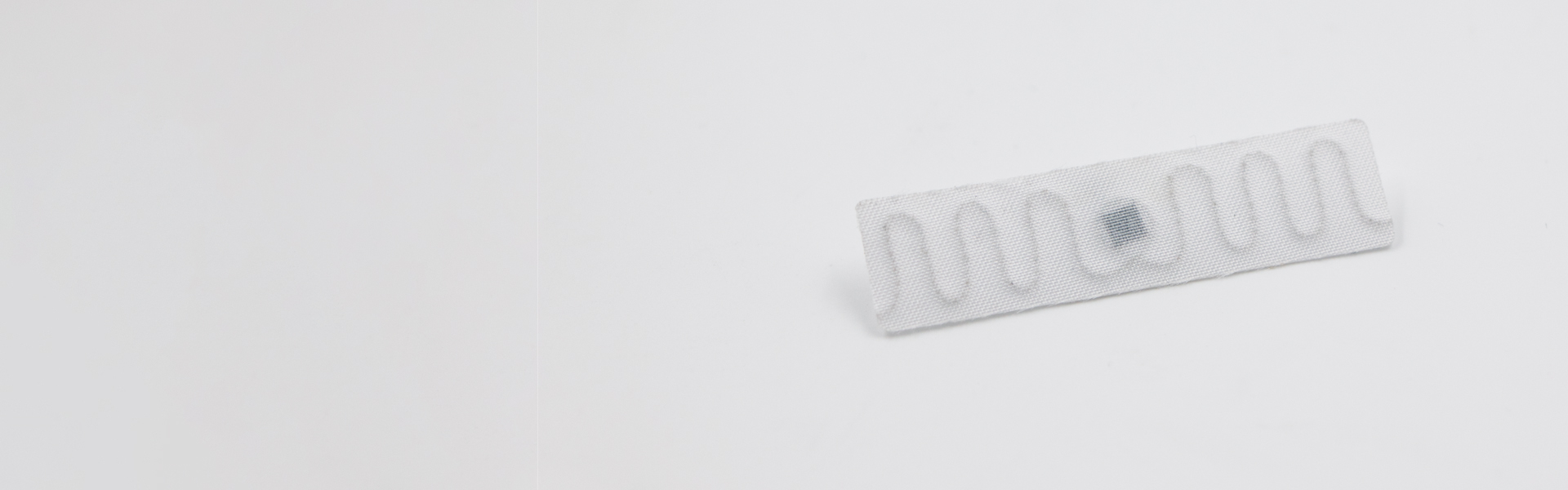

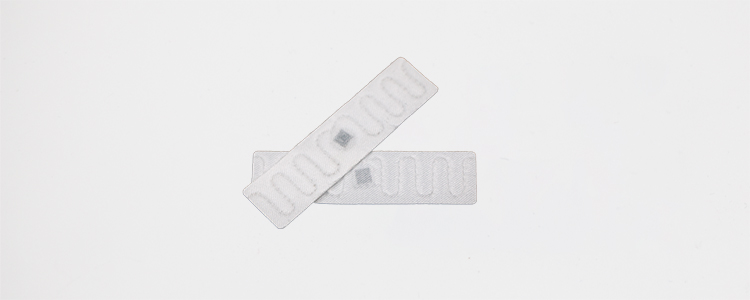

| Physical Features | Model | Hydro LA405 |
| Material | Polyester | |
| Length x Width | 58 x 15 mm (2.3 x 0.6 in) | |
| Thickness | 1.1 mm(0.04 in)on chip location only, Rest of tag is 0.85 mm(0.03 in) |
|
| Weight | 0.5 g | |
| RFID Features: | RFID Standard | EPC C1G2 (ISO18000-6C) |
| Frequency | 860-960 MHz（worldwide） | |
| Chip Type | NXP Ucode 8 | |
| Memory | User -N/A; EPC - 128 bits; TID - 96 bits | |
| Data Storage | > 20 years | |
| Re-write | 100,000 times | |
| Read Range(Fixed Reader) | US: >11.5 m(38 ft); EU:> 12.5 m(41 ft) | |
| Read Range(Handheld Reader) | US: >7.5 m(25 ft); EU: >7 m(23 ft) | |
| Other Features: | Installation | Sew:Sewn inside the hem or pouch Heat-sealing:Heat-seal the tag onto the textile at 210°C and 0.6-0.8 MPa for 20 seconds |
| Warranty | 200 washing cycles or 3 years, whichever comes first | |
| Washing Method | Laundry, Dry cleaning | |
| Water Extraction pressure | 60 bars | |
| Chemical Resistance | Detergent, Softener, Bleach (Oxygen/ Chlorine), Alkali | |
| Washing Temperature | 90°C (194°F)/15 minutes | |
| Pre-drying in Tumble | 180°C (356°F)/30 minutes | |
| Ironing Tempereature | 185°C (365°F)/10 seconds | |
| Sterilization Tempereature | 135°℃ (275°F)/20 minutes | |
| Humidity/ Temperature-Operating | -20~+85℃（-4~185℉）/ 8-95%RH | |
| Personalization | Serial number, LOGO printing, Encoding, Antenna design.etc | |
| Applications | Industrial washing/Management of uniforms Medical apparel management/Military clothing management |
