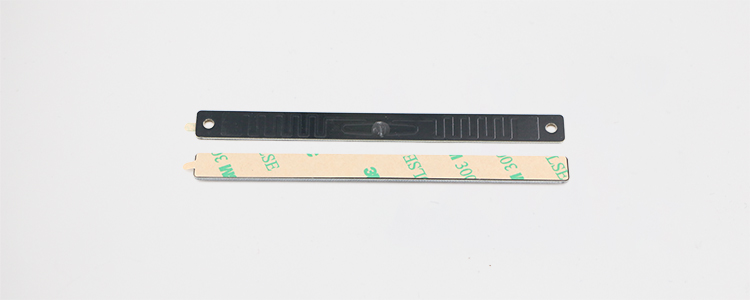

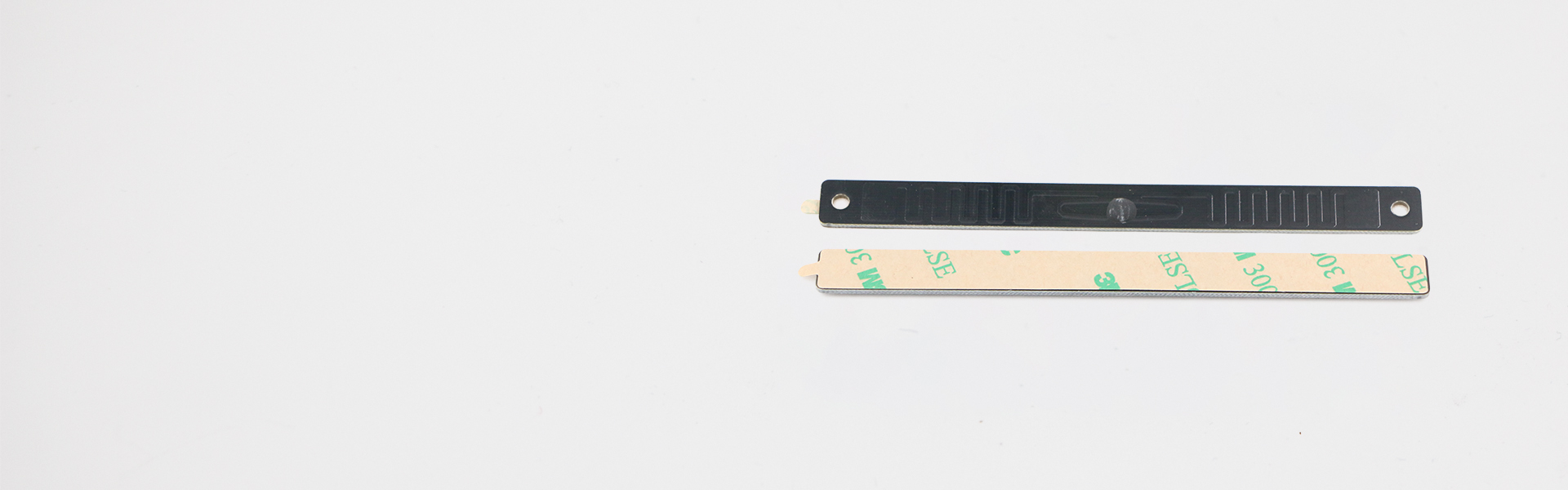

Physical Features Model RCT10001
Material FR-4
Color Black
Dimensions 110 x 9.6 x 1.2 mm(L x H x W)
Weight 2.4 g
Working Temp -40~+85℃
Survive Temp -40~+150℃
IP Code IP68
Humidity 98% Non-condensing
RFID Features RFID Standard EPC C1G2 (ISO18000-6C)
Chip Type M4E: User -128 bits; EPC- 496 bits; TID - 48 bits
M4QT: User -512 bits; EPC- 128 bits; TID - 48 bits
Memory EPC-128 bits/496 bits; TID-512 bits/128 bits
Read Range(Fixed Reader) 13 m, on metal
Other Features Data Storage > 10 years
Re-write 100000 times
Installation 3M adhesive, Rivet, Magnet, Screw
Customization Printing LOGO, Barcode, Serial number, Encoding, Designing,etc
Application

Wooden pallet identification | Plastic pallet tracking

Non-metal assets management | High temperature asset tracking,etc
