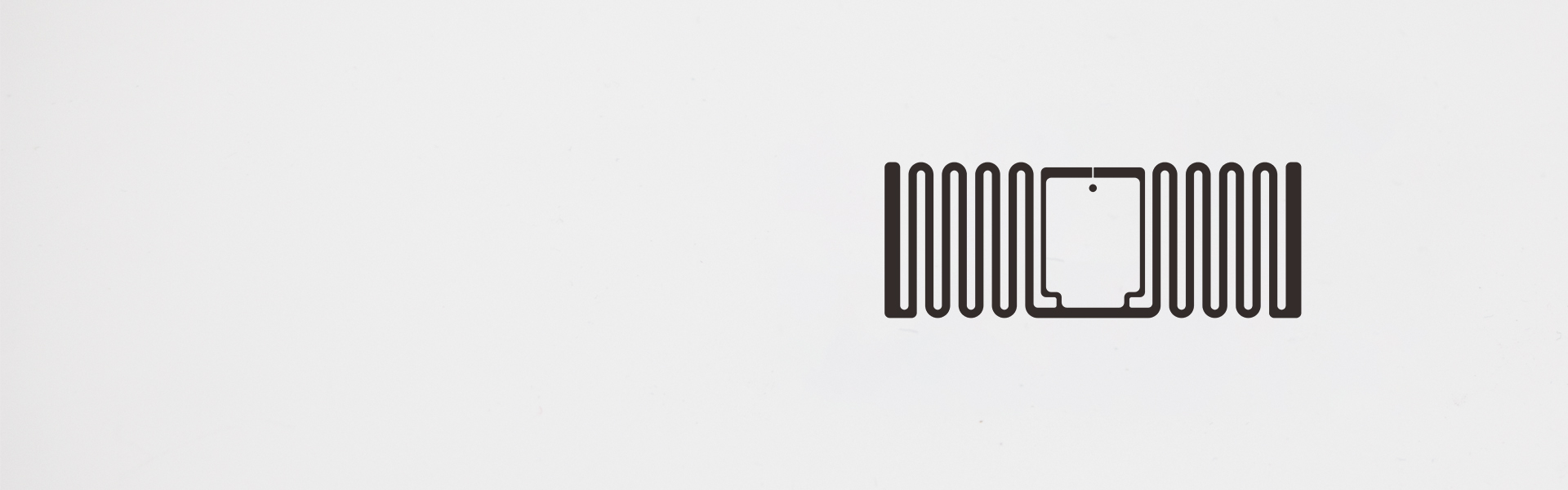

| Physical Features | Antenna Size | 40 x 15 mm |
| Wet Inlay/Label Size | 43 x 18 mm (customized) | |
| Material | Coated Paper/PET/Fragile Paper | |
| Working Temp | -40~+85℃ | |
| Storage Temp | 23±3 ℃ | |
| Storage Humidity | 50±15 %RH | |
| RFID Features | RFID Standard | EPC C1G2 (ISO18000-6C) |
| Chip Type | NXP Ucode 8/9/9XE | |
| Memory | U8:User - N/A; EPC - 128 bits; TID - 96 bits; Access Passwords - 32 bits U9: User - N/A; EPC - 96 bits; TID - 96 bits; Access Passwords - N/A U9XE: User - N/A; EPC - 128 bits; TID - 96 bits; Access Passwords - N/A |
|
| Read Range(Fixed Reader) | 8.0 m | |
| Other Features | Data Storage | > 10 years |
| Re-write | 100000 times | |
| Customization | Printing LOGO, Barcode, Serial number, Encoding, Designing,etc | |
| Package | Reel core inner dimension: 76.2mm / 3(in), Outside diameter < 220 mm / 8.7(in), 1000-5000pcs/roll, 4 rolls /carton |
|
| Application | Apparel management | Logistics management Document management | Assets management, etc. |
