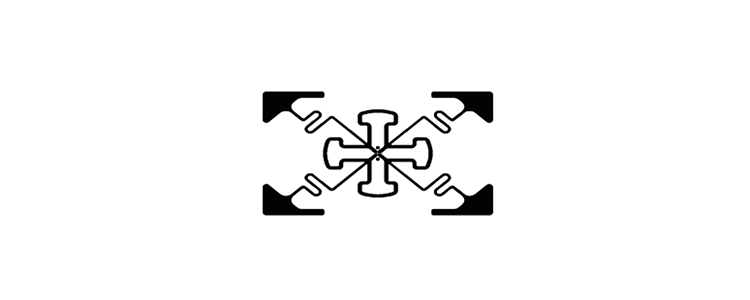

| Physical Features | Antenna Size | 60 x 40 mm |
| Wet Inlay/Label Size | 63 x 43 mm (customized) | |
| Material | Coated Paper/PET/Fragile Paper | |
| Working Temp | -40~+85℃ | |
| Storage Temp | 23±3 ℃ | |
| Storage Humidity | 50±15 %RH | |
| RFID Features | RFID Standard | EPC C1G2 (ISO18000-6C) |
| Chip Type | Impinj Monza 4E/ 4QT | |
| Memory | M4E: User -128 bits; EPC- 496 bits; TID - 48 bits M4QT: User -512 bits; EPC- 128 bits; TID - 48 bits |
|
| Read Range(Fixed Reader) | 10 m | |
| Other Features | Data Storage | > 10 years |
| Re-write | 100000 times | |
| Customization | Printing LOGO, Barcode, Serial number, Encoding, Designing,etc | |
| Package | Reel core inner dimension: 76.2mm / 3(in), Outside diameter < 220 mm / 8.7(in), 1000-5000pcs/roll, 4 rolls /carton |
|
| Application | Apparel management | Logistics management Document management | Assets management, etc. |
