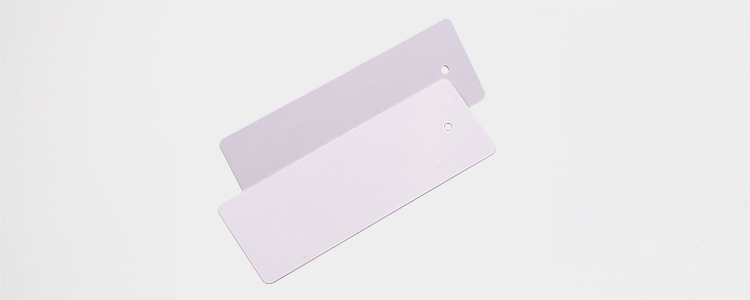

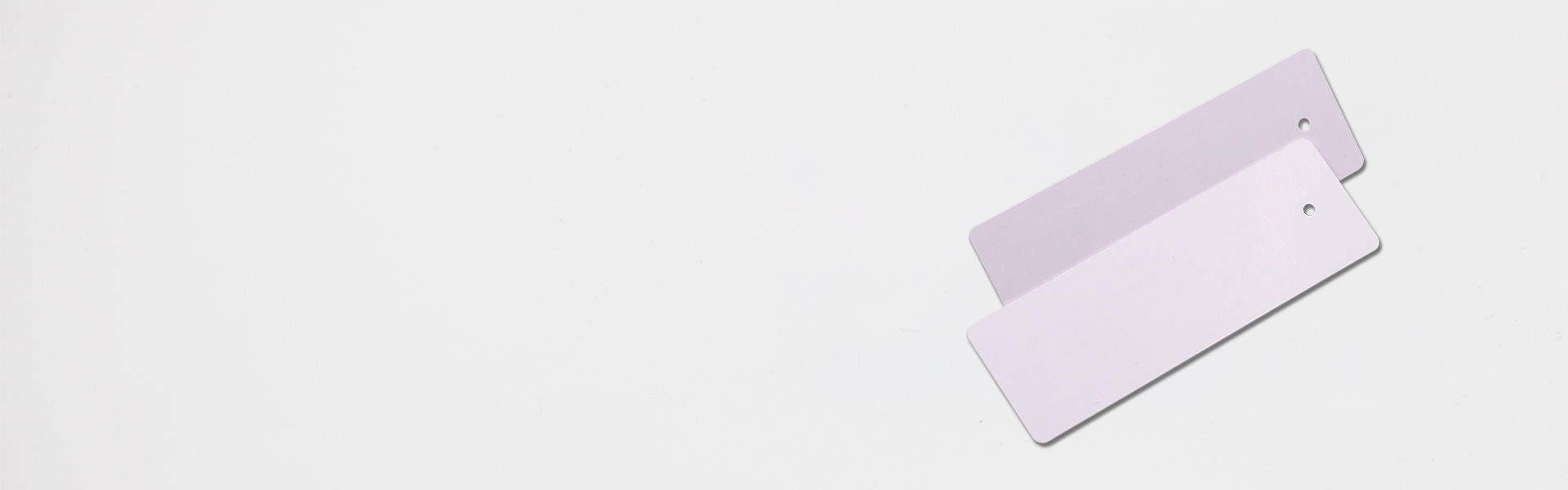

Physical Features Model RC9015
Material Paper
Dimensions 110 x 37 x 0.35 mm
Working Temp -40~+85℃
Survive Temp

-40~+85℃

RFID Features RFID Standard EPC C1G2 (ISO18000-6C)
Chip Type NXP Ucode 8/9/9xe
Memory

U8: User - N/A; EPC - 128 bits; TID - 96 bits; Access Passwords - 32 bits

U9: User - N/A; EPC - 96 bits; TID - 96 bits; Access Passwords - N/A

U9xe: User - N/A; EPC - 128 bits; TID - 96 bits; Access Passwords - N/A

Read Range(Fixed Reade FCC) 20.0 m on clothes;16.0 m,in air
Read Range(Fixed Reade ETSI) 16.0 m on clothes; 11.0 m,in air
Other Features Data Storage > 10 years
Re-write 100000 times
Installation Hang, Adhesive
Customization Logo, barcode/QR code, number printing, encoding, design,etc
Application Logistics sorting | Apparel retail and management | Assets tracking management, etc.
Application
